6T / 8T Battery Electric Truck Chassis Platforms for Urban Logistics
Jenwyn Tech supplies a battery electric truck chassis platform for commercial vehicle manufacturers developing electric delivery trucks and other cargo transport vehicles. Available in 6T and 8T gross vehicle weight configurations, the platform integrates the electric powertrain, battery system, and chassis systems into a coordinated vehicle foundation.
For OEMs, truck body manufacturers, and vehicle assemblers, starting with an established chassis platform can reduce the amount of chassis and powertrain development required from scratch. With configuration options and application-focused engineering support, customers can focus their development resources on body integration, vehicle-specific requirements, and adaptation to their target markets.
Lower R&D Investment
Reduce development time, engineering workload, and in-house R&D requirements with an established chassis and powertrain platform.
Flexible Body Integration
Integrate your own cargo, refrigerated, or application-specific body to meet target market needs.
In-House Control Software
Proprietary VCU and MCU software supports project-specific adjustments and light customization.
Market-Validated Systems
Leverage systems with real-world application experience to reduce development and validation work.
Faster Time to Market
Focus on vehicle integration and body development to accelerate the launch of your new models.
6T / 8T
5,800 / 8,500 kg
60 / 75 kW
≥ 200 km

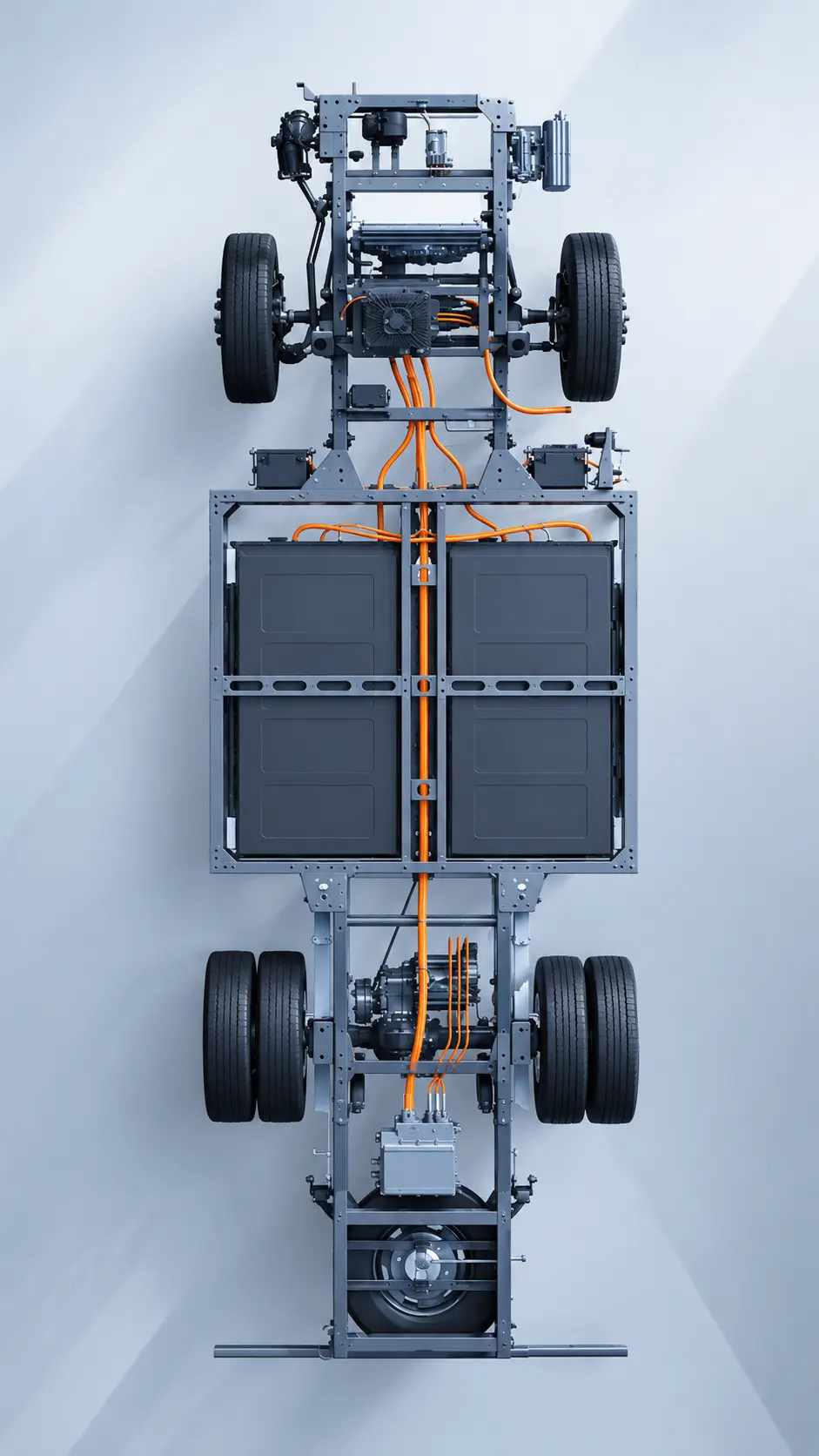

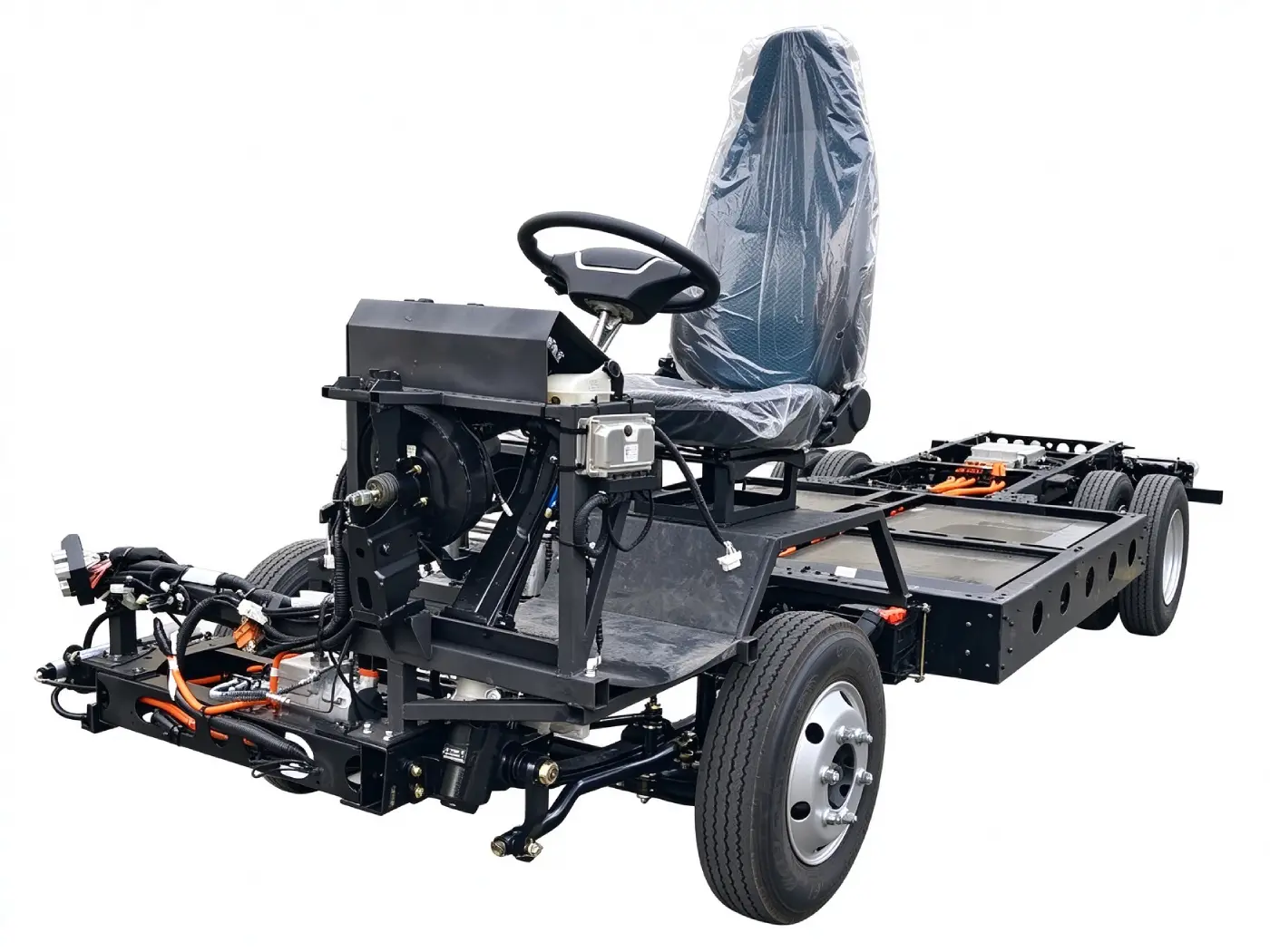

Battery Electric Truck Chassis Platform Overview
Jenwyn Tech’s battery electric truck chassis platform provides a development foundation for OEMs, body manufacturers, and vehicle assemblers building electric commercial trucks. Available in 6T and 8T configurations, the platform combines an established chassis architecture with an integrated electric powertrain, supporting vehicle development and adaptation for different commercial applications.
Integrated Chassis Systems
The platform integrates the electric powertrain, battery, electronic controls, and other auxiliary systems. This reduces component sourcing and system development work for vehicle manufacturers.
Rear Integrated Liquid-Cooled PMSM E-Axle
A liquid-cooled PMSM is integrated with the rear drive axle, creating a compact propulsion layout. This saves packaging space for the battery system, vehicle structure, and truck body.
Flexible Battery Capacity
Beyond the standard configuration, battery capacity options include 73.14 kWh, 81 kWh, and 120 kWh to suit different range requirements. Battery systems can be sourced from leading suppliers such as CATL, Gotion, and BYD, or specified by the customer.
Protected In-Frame Battery Layout
The battery packs are installed within the main chassis frame, helping shield them from side impacts and providing a protected packaging arrangement for commercial vehicle applications.
Reinforced Underbody Battery Protection
A hot-formed steel (PHS) underbody shield helps resist impact intrusion. A PVC stone-chip base coat and puncture-resistant top layer provide additional protection against road debris and sharp objects that could damage the battery pack.
Pre-Routed Wiring
Electrical connectors are routed, loomed, and labeled before shipment, simplifying body installation and reducing wiring work during vehicle assembly.
Applications for the Battery Electric Truck Chassis
The Jenwyn Tech 6T / 8T battery electric truck chassis platforms can be evaluated for a range of commercial cargo applications. Vehicle suitability depends on gross vehicle weight, cargo body configuration, daily mileage, operating conditions, and charging arrangements. Final specifications should be confirmed against the requirements of each project.
Urban and Last-Mile Delivery
For parcel delivery, e-commerce distribution, supermarket replenishment, and other urban freight operations. Regular delivery routes and planned depot charging can help operators assess vehicle utilization and operating costs.
Configuration considerations: Gross vehicle weight, cargo volume, daily mileage, stop-start duty cycle, and charging schedule.
Temperature-Controlled Transport
For refrigerated delivery of food, beverages, and other temperature-sensitive goods. The chassis configuration should account for the weight of the insulated body and the additional energy demand of refrigeration equipment.
Configuration considerations: Insulated body weight, refrigeration power demand, required operating temperature, payload, and driving range.
Regional and Inter-Site Logistics
For cargo transport between warehouses, distribution centers, industrial facilities, and nearby operating sites. Route distance, loading conditions, and road gradients should be assessed when matching the chassis to the intended duty cycle.
Configuration considerations: Gross vehicle weight, axle loads, route distance, gradeability, and charging intervals.
Customized EV LCV Projects
For projects requiring application-specific cargo bodies, vehicle structures, or auxiliary equipment. Chassis suitability and integration requirements should be reviewed individually according to body mounting, load distribution, electrical interfaces, and local regulations.
Configuration considerations: Body mounting interfaces, load distribution, auxiliary power demand, operating weight, and project-specific validation.
6T / 8T Battery Electric Truck Chassis Specifications
Compare our 6T and 8T battery electric truck chassis configurations by dimensions, electric powertrain, battery capacity, and vehicle performance. The specifications below provide a starting point for chassis selection and vehicle integration. Final configurations may vary according to project requirements.
| Model | EV42-6T | EV42-8T |
|---|---|---|
| Curb Weight | ≤2,680 kg | ≤3,050 kg |
| Maximum GVW | 5,800 kg | 8,500 kg |
| Overall Dimensions (L × W × H) | 5,996 × 2,040 × 2,255 mm | 5,996 × 2,040 × 2,255 mm |
| Wheelbase | 3,300 mm | 3,300 mm |
| Rated Motor Power | 60 kW | 75 kW |
| Peak Motor Power | 120 kW | 150 kW |
| Standard Battery Capacity | 102.78 kWh | 115.01 kWh |
| Battery Nominal Voltage | 540.96 V | 605 V |
| Maximum Speed | ≥90 km/h | ≥90 km/h |
| ≥90 km/h | ≥20% | ≥20% |
| Front Axle Rating | 2.3 t | 3.0 t |
| Rear E-Axle Rating | 3.5 t | 5.5 t |
| Listed Driving Range | ≥200 km (WLTP) | ≥200 km (WLTP) |
| Charging | DC fast charging | DC fast charging |
| Braking System | Dual-circuit hydraulic vacuum-assisted braking; front disc / rear drum; ABS | Dual-circuit air braking; front disc / rear drum; ABS |
Optional Configurations
- Battery Capacity Options: 73.14 kWh, 81 kWh, and 120 kWh. Battery capacity can be adjusted according to the required driving range.
- European-Standard Charging: Charging configuration compatible with European standards.
- Drivable Rolling Chassis: Available as an option, subject to confirmation of the applicable vehicle classification and configuration.
Why Choose Jenwyn Tech for Your Battery Electric Truck Chassis Project?
Choosing an electric truck chassis involves more than comparing vehicle specifications. OEMs also need to assess system compatibility, integration requirements, and the technical support available throughout the project. Jenwyn Tech combines commercial EV system expertise with application-focused engineering coordination to support these requirements.
Strong Commercial EV Engineering Background
With 15+ years of automotive industry experience and involvement in commercial EV development, Jenwyn Tech understands the engineering considerations behind electric powertrain and chassis applications.
Chassis and Powertrain Supply in One Portfolio
Beyond electric truck chassis, we supply related powertrain systems and components, including traction motors, e-axles, etc. This gives customers the option to discuss related system requirements within one supplier relationship.
Rich International Project Delivery Experience
We have supplied electric truck chassis to international markets, such as the Philippines, South Korea, South Africa, and Ecuador. This experience provides a practical foundation for coordinating technical requirements across different vehicle projects and markets.
Our Working Process
01. Application Assessment
We analyze customer requirements and vehicle operating conditions to define the appropriate chassis solution. Key considerations include:
- Vehicle type and application
- Operating environment
- Payload requirements
- Duty cycle and driving conditions
02. Chassis Solution Definition
Based on application requirements, our engineering team defines the suitable chassis configuration and technical specifications.
- Chassis architecture selection
- System configuration
- Component matching
- Performance requirements
03. Engineering Design
We optimize the chassis design to ensure compatibility with different vehicle bodies and customer integration requirements. Including:
- Chassis layout optimization
- Mounting interface design
- Electrical interface definition
- Technical documentation
04. Technical Collaboration
Our engineering team works closely with customer technical teams throughout the project to support smooth chassis integration.
Support includes:
- Technical communication
- Engineering coordination
- Interface verification
- Integration assistance
05. Validation & Delivery
Before delivery, chassis undergo engineering verification and functional testing to ensure reliability for the intended application.
Including:
- System performance verification
- Functional testing
- Quality inspection
- Delivery preparation
06. After-Delivery Support
Following delivery, Jenwyn Tech continues to provide technical assistance throughout vehicle integration and operation.
Support includes:
- Installation guidance
- Remote technical support
- Troubleshooting assistance
- Engineering consultation
Support for SKD/CKD and Local Assembly Projects
- For SKD/CKD projects, supply scope can be tailored to local assembly capabilities, import regulations, and the required level of vehicle integration.
- Supply options may include a rolling chassis, selected EV systems, or a project-specific component package, subject to technical review and confirmation for each program.
Frequently Asked Questions
Yes. Jenwyn Tech can provide both left-hand drive (LHD) and right-hand drive (RHD) solutions, depending on the vehicle platform and target market requirements. Please share your intended market and vehicle specifications so we can assess the suitable configuration.
Yes. Battery capacity can be customized according to your vehicle range, payload, packaging, and project requirements. We offer standard battery solutions from established suppliers such as CATL, Gotion, and BYD, and can also evaluate customer-designated battery brands based on technical compatibility and availability.
We can supply bare chassis, rolling chassis, and complete vehicle solutions, depending on the project requirements. Complete vehicle options can include refrigerated trucks and other application-specific commercial vehicles.
Yes. In addition to complete chassis platforms, we can supply EV powertrain systems and components, including electric motors, electric drive axles, and battery systems. The supply scope can be tailored to your vehicle development and integration needs.
Yes. Our VCU software is developed in-house, allowing us to evaluate project-specific adjustments to vehicle control strategies and integration requirements. The scope of customization depends on the vehicle architecture, technical requirements, and project feasibility.
We support projects with relatively low initial order quantities compared with many large OEM suppliers. The MOQ depends on the selected product, configuration, and degree of customization. Contact us with your project requirements to discuss a suitable arrangement.
Our electric chassis platforms have been exported to markets including South Korea, the Philippines, South Africa, Ecuador, Egypt, and Japan. This international project experience helps us understand different market requirements and support customers developing commercial EV projects for their local markets.
Customers can share their vehicle requirements, including vehicle type, operating conditions, target market, body configuration, and performance requirements.
Our engineering team will evaluate the application and recommend a suitable chassis configuration or customized solution.
