Electric Axles for Commercial Vehicles
We develop and manufacture integrated electric axles for a wide range of commercial EV applications, including light-duty trucks, medium- and heavy-duty trucks, buses, coaches, and specialty vehicles. Our electric axle portfolio covers independent suspension electric axles, central-mounted electric axles, and rigid electric portal axles, with axle load capacities ranging from 1.8 to 13 tons.
Based on mature product architectures and extensive mass-production experience, our electric axles have been validated through large-scale commercial applications in domestic and international markets. Our electric portal axles have been deployed in low-floor buses exported to European markets, including the UK and France, while our heavy-duty electric axles have achieved batch deployment in logistics and highway transportation applications.
By integrating the electric motor, transmission, and axle system into a compact e-powertrain unit, our solutions help OEM customers achieve optimized vehicle packaging, improved energy efficiency, reduced system weight, and reliable performance across diverse operating conditions.
Proven Mass-Production Experience
Our electric axles are based on mature architectures and extensive real-world application experience. Multiple configurations have entered mass production and been validated across buses, logistics vehicles, heavy-duty trucks, and specialty vehicles.
Comprehensive Product Portfolio
We offer multiple electric axle architectures, including independent suspension, central-mounted integrated, and rigid electric portal axles, covering axle loads from 1.8 to 13 tons. Our modular platform approach enables flexible adaptation to different commercial EV applications and vehicle requirements.
Application-Oriented Solutions
Our electric axle systems are optimized for diverse commercial vehicle scenarios, balancing efficiency, performance, reliability, and packaging requirements. Solutions are available for applications including urban logistics, public transportation, heavy-duty transportation, and specialty vehicles.
Electric Axles by Vehicle Application
Our electric axles are developed for a wide range of commercial EV platforms, including light-duty trucks, buses, coaches, medium- and heavy-duty trucks, and specialty vehicles. With mature architectures and extensive mass-production experience, our solutions have been validated across diverse operating scenarios, from urban mobility and logistics transportation to heavy-duty commercial applications.
Covering multiple axle load classes, power levels, and drive configurations, our electric axle portfolio provides flexible solutions for OEM customers based on vehicle requirements, duty cycles, performance expectations, and packaging needs.
Light Commercial Vehicles
Designed for light trucks, delivery vans, and other LCVs, providing compact integration, efficient power delivery, and reliable performance for last-mile logistics applications.

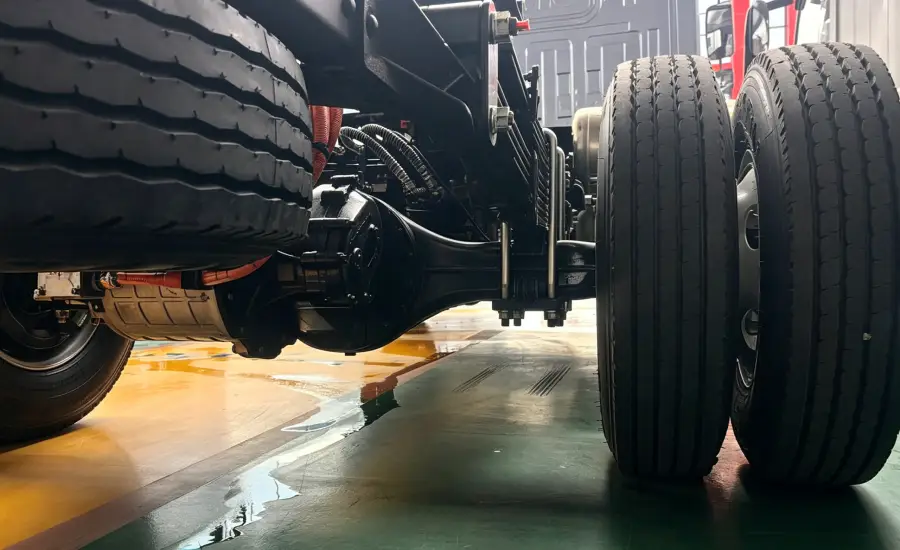

Medium-Duty Trucks
Designed for electric medium-duty cargo trucks and specialty vehicles, delivering a balance of payload capability, driving efficiency, and durability for urban logistics and vocational applications.

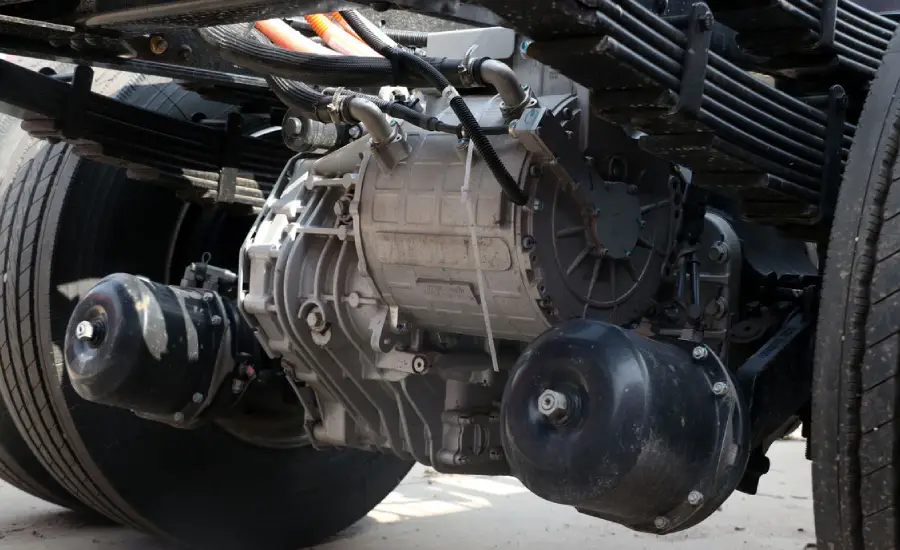

Heavy Commercial Vehicles
High-performance electric axles for heavy-duty trucks, tractors, and demanding applications, engineered for high torque output, robust load capacity, and reliable operation under challenging conditions.
Buses & Coaches
Engineered for low-floor city buses, highway coaches, airport shuttle buses, trolleybuses, and articulated buses, optimized for passenger transport with high-efficiency operation.
01

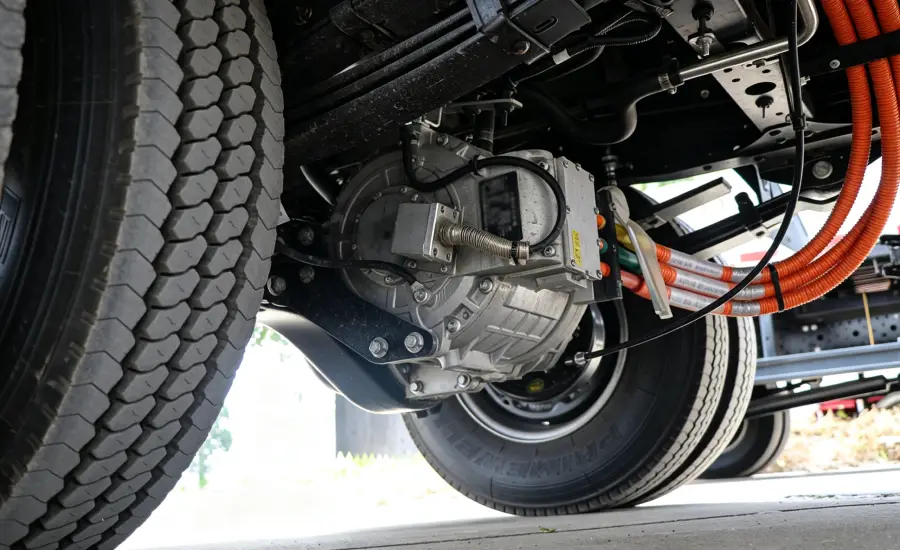

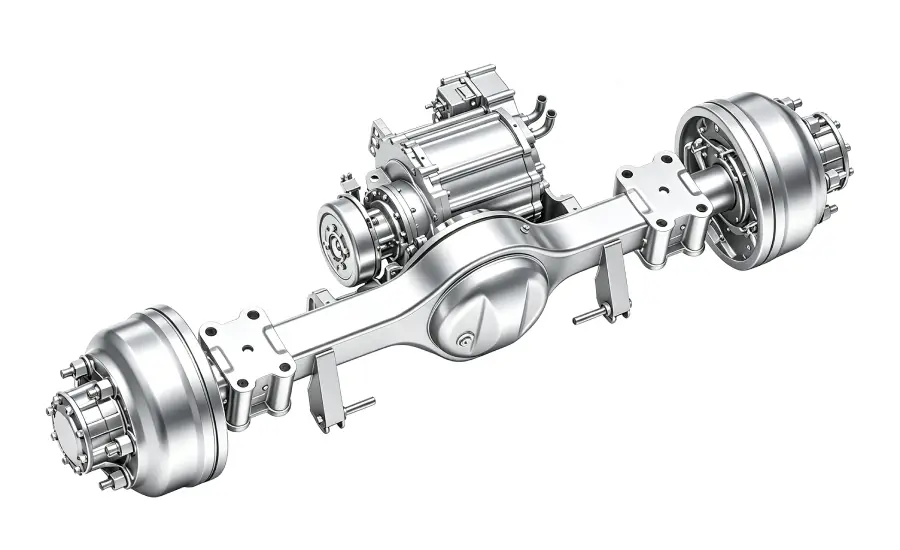

Electric Axles for Light Commercial Vehicles
Our LCV electric axles are developed for urban logistics, delivery trucks, and light commercial EV applications requiring high efficiency, reliability, and flexible vehicle packaging. Featuring an integrated motor, transmission, and axle design, our solutions provide a compact and efficient alternative to traditional centralized drivetrain layouts.
With optimized transverse architecture and lightweight structural design, our electric axles reduce mechanical losses, improve regenerative braking efficiency, and release valuable chassis space for battery placement. Proven through commercial vehicle applications, these solutions support reliable operation under frequent acceleration, braking, and urban delivery conditions.
Typical Light Commercial Vehicle E-Axle Requirements
- Optimized drivetrain efficiency to reduce energy consumption
- Space-efficient architecture to simplify vehicle integration
- Reliable performance under daily commercial use
- Lower cost, reduced energy consumption, and simplified maintenance
Our Electric LCV Axles Portfolio
| Model | Configuration | Vehicle Platform | Axle Load Capacity | Maximum Output Torque | Motor Rated/Peak Power | Motor Rated/Peak Torque | Gear Ratio | Architecture | Brake Type |
|---|---|---|---|---|---|---|---|---|---|
| JEA18-40-S1-01 | Single motor, single-speed | MPV, pickup truck | 1800 kg | 3200 N.m (10.43); 1800 N.m (17.27) | 40 kW / 80 kW | 110 N.m / 300 N.m | 10.43 or 17.27 | Central integrated eAxle | Drum brake / Wedge brake / Disc brake |
| JEA25-50-S1-01 | Single motor, single-speed | Light truck | 2500 kg | 4000 N.m (13.214); 4125 N.m (15.28) | 50 kW / 105 kW | 140 N.m / 300 N.m | 13.214 or 15.28 | Central integrated eAxle | Dual-cylinder hydraulic disc brake (48); Hydraulic brake Ф320×100/Ф280×64/Ф208×64 |
| JEA35-80-S2-01 | Single motor, two-speed | Light truck | 3500 - 4500 kg | 5500 N.m / 7800 N.m / 8000 N.m | 80 kW / 160 kW | 160 N.m / 360 N.m | 22.15 / 12.06 | Central integrated eAxle | Wedge brake / Dual-cylinder hydraulic disc brake (48); Hydraulic Drum Brake Φ320×100 |
| JEA35-70-S1-01 | Single motor, single-speed | 4.5-6 t light truck; 6 m bus | 3500 kg | 5300 N.m | 70 kW / 130 kW | 146 N.m / 314 N.m | 16.6 | Central integrated eAxle | Drum brake Φ310×75 (Hydraulic); Drum brake Φ310×100 (Air) |
| JEA45-80-S1-01 | Single motor, single-speed | 4.5-6 t light truck; 6 m bus | 4500 kg | 6640 N.m | 80 kW / 160 kW | 175 N.m / 400 N.m | 16.6 | Central integrated eAxle | Drum brake Φ310×75 (Hydraulic); Drum brake Φ310×100 (Air) |
* We supply matched MCUs for each e-powertrain platform. For additional configurations and customized solutions, please contact us at: contact@jenwyntech.com
Why Choose Our Electric Axles for Light Commercial Vehicles
- Optimized installation space and efficient battery packaging across LCV platforms
- Responsive torque output and efficient operation for frequent start-stop applications
- Developed on mature platforms with proven reliability in real-world vehicle applications
- Modular configurations covering different axle loads, power levels, and vehicle requirements
02

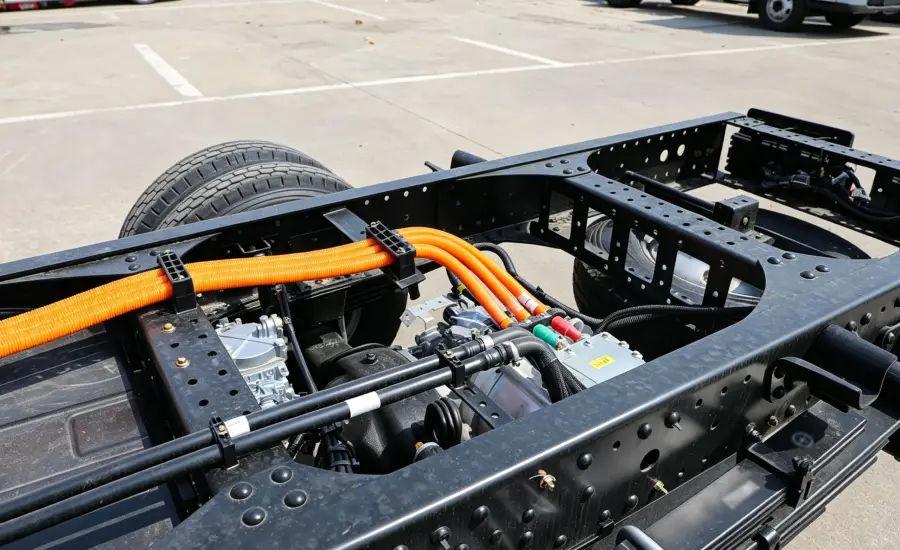

Electric Axles for Medium-Duty Trucks
Medium-duty electric trucks require high-performance and reliable eAxle solutions to meet demanding commercial operating conditions. Our eAxles are designed for 6–18 ton electric vehicles, including cargo trucks and specialty vehicles, supporting urban logistics, fixed-route transportation, and fleet applications.
Based on a central integrated single-motor two-speed eAxle architecture, our solutions deliver high wheel-end torque, improved drivetrain efficiency, and flexible vehicle integration. The product portfolio covers 5 to 9.5-ton axle loads, providing wheel-end torque up to 16,400 N·m.
For North American Class 4–6 commercial vehicles, we offer dedicated variants with hydraulic disc brake configurations, enabling OEMs to maintain existing chassis certification and avoid additional brake system validation when upgrading to electric platforms.
Typical Medium-Duty Truck E-Powertrain Requirements
- Efficient operation for urban logistics applications
- High torque capability for frequent acceleration and loading conditions
- Reliable performance for continuous fleet operation
- Optimized energy efficiency and lower operating costs
Our Electric Medium-Duty Truck Axles Portfolio
| Model | Configuration | Vehicle Platform | Axle Load Capacity | Maximum Output Torque | Motor Rated/Peak Power | Motor Rated/Peak Torque | Gear Ratio | Brake Type |
|---|---|---|---|---|---|---|---|---|
| JEA50-100-S2-01 | Single motor, two-speed | 6-10 t cargo truck | 5000 kg | 9000 N.m | 100 kW / 200 kW | 200 N.m / 400 N.m | 22.6 / 10.0 | Drum Brake Φ310×100 |
| JEA60-100-S2-01 | Single motor, two-speed | 6-10 t cargo truck | 6000 kg | 10000 N.m | 100 kW / 200 kW | 220 N.m / 440 N.m | 22.6 / 10.0 | Drum Brake Φ310×100 |
| JEA65-132-S2-01 | Single motor, two-speed | 6-10 t cargo truck | 6500 kg | 10000 N.m | 132 kW / 260 kW | 228 N.m / 430 N.m | 22.6 / 10.0 | Drum Brake Φ310×100 |
| JEA80-120-S2-01 | Single motor, two-speed | 12-18 t cargo truck, specialty vehicle | 8000 kg | 14000 N.m | 120 kW / 240 kW | 230 N.m / 540 N.m | 25.23 / 12.96 | Drum Brake Φ360×160 |
| JEA80-150-S2-01 | Single motor, two-speed | 12-18 t cargo truck, specialty vehicle | 8000 kg | 16000 N.m | 150 kW / 270 kW | 340 N.m / 650 N.m | 25.23 / 12.96 | Drum Brake Φ320×160 |
| JEA55-73-S1-01 | Single motor, single-speed | 6-10 t cargo truck, 7-8 m bus | 5500 kg | 8536 N.m (15.52); 6974 N.m (12.68) | 73 kW / 160 kW | 203 N.m / 550 N.m | 15.52 or 12.68 | 17.5" Disc Brake / Drum Brake / Wedge Brake |
| JEA65-100-S1-01 | Single motor, single-speed | 6-10 t cargo truck, 7-8 m bus | 6500 kg | 10120 N.m | 100 kW / 200 kW | 230 N.m / 500 N.m | 20.24 | 17.5" Disc Brake |
| JEA85-105-S1-01 | Single motor, single-speed | 12-18 t cargo truck, 8-10 m bus | 8500 kg | 12187 N.m (18.75); 13080 N.m (20.124) | 105 kW / 188 kW | 335 N.m / 650 N.m | 18.75 or 20.124 | 19.5" Disc Brake / Drum Brake / Wedge Brake |
| JEA95-130-S1-01 | Single motor, single-speed | 12-18 t cargo truck, 8-10 m bus | 9500 kg | 16000 N.m (20.124); 16417 N.m (20.522) | 130 kW / 220 kW | 330 N.m / 800 N.m | 20.124 or 20.522 | 22.5" Disc Brake |
| JEA55-75-S2-01 | Single motor, two-speed | 6-10 t cargo truck, 5-7 m bus | 5500-6500 kg | 10000 N.m | 75 kW / 167 kW | 160 N.m / 410 N.m | 23.7 / 12.9 | Φ310 Wedge Brake / 17.5" Disc Brake |
| JEA75-80-S2-01 | Single motor, two-speed | 12-18 t cargo truck, 8-9 m coach | 7500-9000 kg | 9214 N.m (14000 N.m) | 80 kW / 200 kW | 220 N.m / 450 N.m | 31.203 / 15.06 | 17.5"/19.5" Disc Brake / Φ310 Wedge Brake / Φ360 Drum Brake |
* We supply matched MCUs for each e-powertrain platform. For additional configurations and customized solutions, please contact us at: contact@jenwyntech.com
Why Choose Our Electric Axles for Medium-Duty Trucks
- High-efficiency transverse architecture optimized for urban delivery cycles
- Integrated axle housing design ensures durability under continuous commercial operation
- Optimized structure reduces weight and improves chassis packaging flexibility
- Motor and transmission integration simplifies vehicle development and service
- Validated solutions with extensive commercial vehicle deployment experience
03

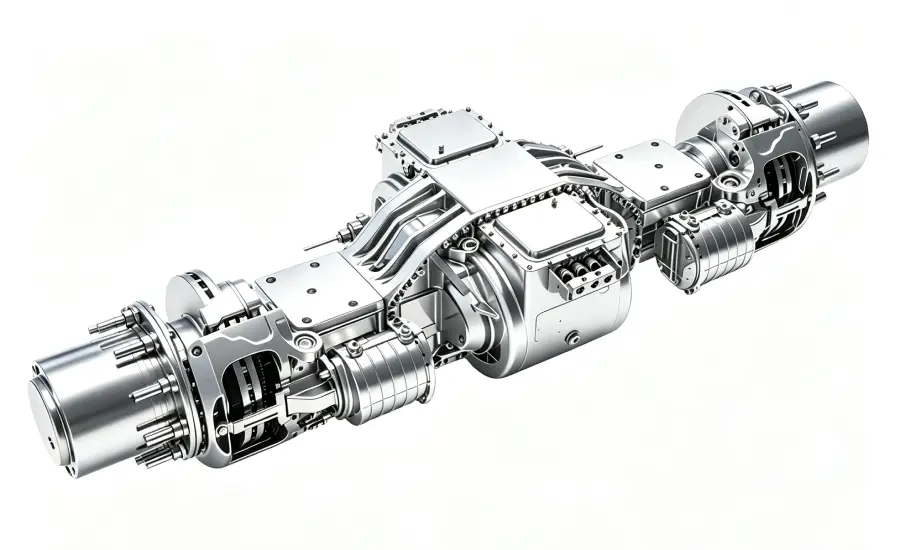

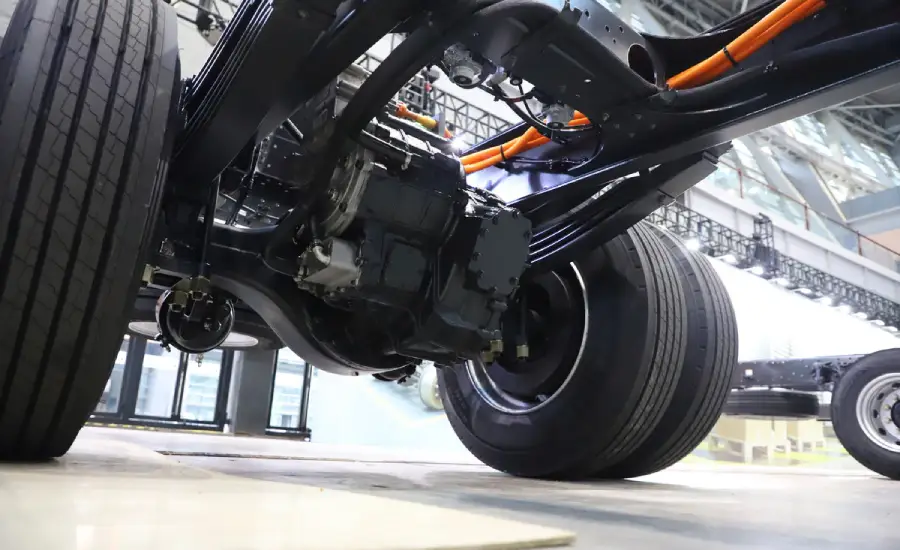

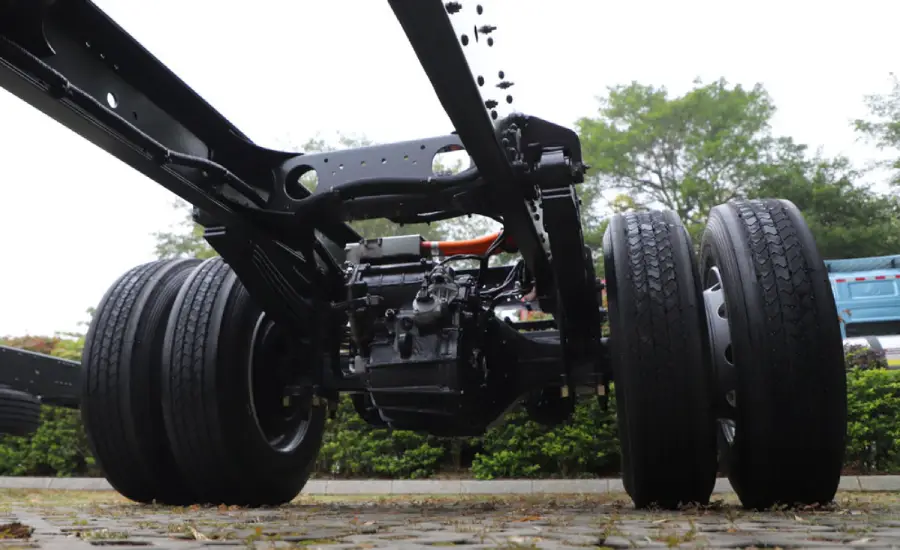

Electric Axles for Heavy Commercial Vehicles
Jenwyn Tech provides electric axle solutions for heavy-duty commercial vehicles, supporting demanding applications including long-haul transportation, mining, ports, steel plants, and other high-load industrial operations. Our eAxle portfolio covers single-motor and dual-motor architectures, designed for various vehicle platforms such as 4×2 and 6×4 electric tractors, dump trucks, and specialized heavy-duty vehicles.
Engineered for high-load duty cycles and challenging operating environments, our electric axles deliver high torque output, optimized drivetrain efficiency, and robust structural performance. These solutions support both highway transportation and low-speed heavy-duty operations, enabling reliable electrification for next-generation commercial vehicles.
Typical HCV E-Powertrain Requirements
- Extremely high torque output for heavy payloads and steep gradients
- High efficiency across diverse duty cycles
- Reliable performance under continuous operation
- Flexible configurations for different vehicle platforms
- Lower total cost of ownership (TCO) for different vehicle platforms
Our Electric HCV Axles Portfolio
| Model | Configuration | Vehicle Platform | Axle Load Capacity | Maximum Output Torque | Motor Rated/Peak Power | Gear Ratio | Brake Type |
|---|---|---|---|---|---|---|---|
| JEA105-200-SM-01 | Single motor, multi-speed | 4x2 heavy-duty truck, 9-10 m coach | 10500 kg | 28000 N.m | 200 kW / 350 kW | 46.4/27.7/15.3 | 19.5" / 22.5" Disc brake |
| JEA130-190-S4-01 | Single motor, four-speed | 6x4, 4x2 heavy-duty truck | 13000 kg | 39089 N.m | 190 kW / 310 kW | 10.2 / 20.0 / 36.3 / 71.0 | Φ410*220 Drum brake |
| JEA130-380-D4-01 | Dual motor, four-speed | 4x2 heavy-duty truck | 13000 kg | 45000 N.m | 2*190 kW / 2*310 kW | 1st: 71.0+46.8 2nd: 36.3+46.8 3rd: 20.0+13.2 4nd: 10.2+13.2 | Φ410*220 Drum brake ; 22.5" Disc brake |
| JEA130-120-S1-01 | Single motor, single-speed | Sanitation vehicle, municipal vehicle | 13000 kg | 50000 N.m | 120 kW / 240 kW | 17.86 | Air Disc Brake / Drum Brake |
| JEA130-160-S2-01 | Single motor, two-speed | 6x4, 4x2 heavy-duty truck | 13000 kg | 41440 N.m | 160 kW / 250 kW | 59.205/19.735 | Φ410*220 Drum brake / Wedge Brake |
| JEA130-200-SM-01 | Single motor, multi-speed | 6x4 heavy-duty truck | 13000 kg | 44000 N.m | 200 kW / 350 kW | 14.42/17.98/34.16/54.42 | 22.5" Disc Brake |
| JEA130-400-DM-01 | Dual motor, multi-speed | Tractor unit | 13000 kg | 43500 N.m | 2*200 kW / 2*350 kW | 51.925/32.535/17.922 | Air Disc Brake / Drum Brake |
* We supply matched MCUs for each e-powertrain platform. For additional configurations and customized solutions, please contact us at: contact@jenwyntech.com
Why Choose Our Electric Axles for Heavy Commercial Vehicles
- Shortened transmission paths reduce energy losses and improve overall system efficiency
- Dual-motor configurations deliver strong launch performance and climbing capability
- Rigid axle housing and mechanical design ensure reliable load-bearing performance
- Validated through vibration, combined load, torque impact, and environmental testing
04
Electric Axles for Buses and Coaches
Our electric axle solutions support a broad range of electric bus and coach applications, from light buses and urban transit vehicles to articulated buses, airport shuttles, and trolleybuses. The portfolio includes central eAxles and electric portal axle systems, available in rigid and independent suspension configurations for different vehicle architectures.
With optimized drivetrain efficiency, high torque capability, and flexible integration options, our eAxles enable reliable and scalable electrification solutions for modern public transportation.
Typical Electric Bus & Coach E-Axle Requirements
- Efficient operation across urban transit and stop-and-go routes
- Compact integration for low-floor and spacious passenger layouts
- Stable performance under high-frequency daily fleet operation
- Reliable operation with enhanced passenger safety and comfort
Our Electric Bus Axles Portfolio
| Model | Configuration | Vehicle Platform | Axle Load Capacity | Maximum Output Torque | Motor Rated/Peak Power | Gear Ratio | Architecture |
|---|---|---|---|---|---|---|---|
| JEA30-50-S1-01 | Single motor, single-speed | 6 m bus | 3000 kg | 3980 N.m (9.49) 5770 N.m (13.75) | 50 kW / 100 kW | 9.49 or 13.75 | Central integrated eAxle |
| JEA35-60-W1-01 | Single motor, single-speed | 5-6 m bus | 3500 kg | 5000 N.m | 60 kW / 120 kW | 12.045 | Independent suspension eAxle |
| JEA36-70-W1-01 | Dual motor, single-speed | 5-6 m low-floor bus | 3600 kg | 2*2100 N.m | 2*35 kW / 2*70 kW | 9.3 | Independent suspension portal eAxle |
| JEA55-70-W1-01 | Dual motor, single-speed | 7-8 m low-floor bus | 5500 kg | 2*3800 N.m | 2*35 kW / 2*70 kW | 16.7 | Independent suspension portal eAxle |
| JEA75-120-W1-01 | Dual motor, single-speed | 8-10 m bus | 7500 kg | 2*6000 N.m | 2*60 kW / 2*120 kW | 17.09 | Independent suspension portal eAxle |
| JEA95-126-W1-01 | Dual motor, single-speed | 9-10 m low-floor bus | 9500 kg | 2*6000 N.m | 2*63 kW / 2*110kW | 14.31 | Rigid portal eAxle |
| JEA130-160-W1-02 | Dual motor, single-speed | 9-12 m low-floor bus | 13000 kg | 2*9000 N.m | 2*80 kW / 2*145kW | 13.91 | Rigid portal eAxle |
* We supply matched MCUs for each e-powertrain platform. For additional configurations and customized solutions, please contact us at: contact@jenwyntech.com
Why Choose Our Electric Axles for Buses and Coaches
- Enable low-floor designs, single-step entry, and improved passenger accessibility
- Support central e-axles, rigid portal axles, and independent suspension portal axles
- Optimized packaging, transmission efficiency, and system integration
- Validated in large-scale electric bus applications for reliable fleet operation
Electric Axles vs Electric Central Drive Systems
Electric Axle
An integrated EV drivetrain solution combining the motor, reduction gearbox, differential, and axle assembly into a single unit. By removing the driveshaft and reducing mechanical transmission components, electric axles deliver improved efficiency, compact packaging, and greater flexibility for next-generation commercial EV platforms.
Key Advantages
- Higher drivetrain efficiency
- Compact and lightweight integration
- Improved battery packaging flexibility
- Support for integrated auxiliary functions, including PTO function
Typical Applications
- Urban logistics and distribution vehicles
- Highway freight applications
- Port and industrial transport vehicles
- Dedicated EV platforms

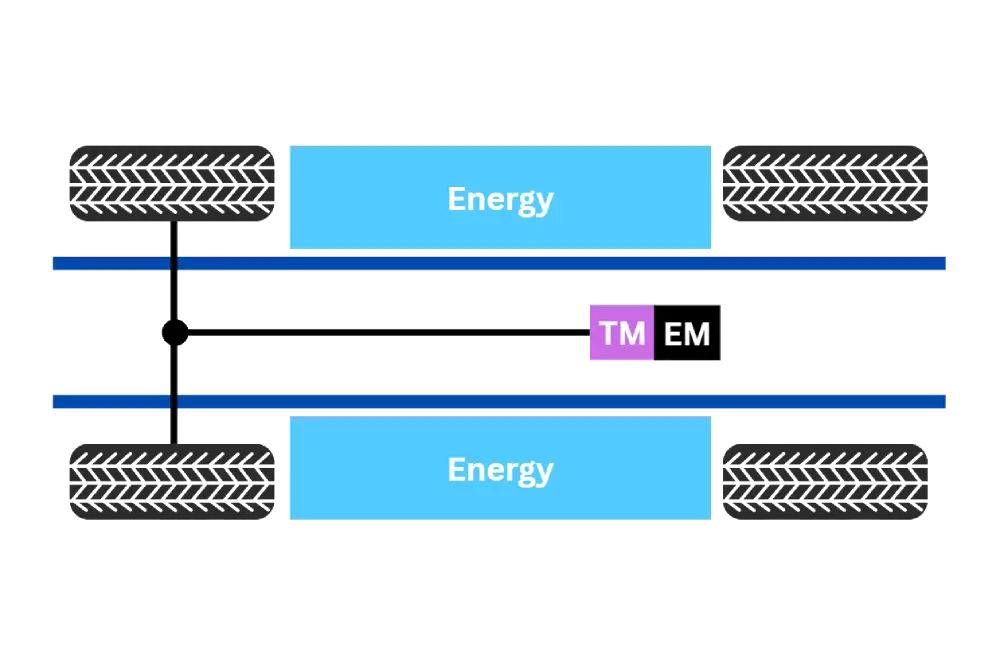

Electric Central Drive
A conventional EV drivetrain architecture featuring a separately mounted electric motor and AMT gearbox. Power is transferred to the rear axle through a driveshaft, differential, and axle shafts. This layout offers high platform compatibility and is widely used for vehicle electrification based on existing commercial vehicle architectures.
Key Advantages
- Mature commercial vehicle architecture
- High compatibility with existing chassis systems
- Flexible adaptation for various vehicle modifications
Typical Applications
- Existing vehicle platform electrification
- Cost-sensitive applications
- Harsh off-road operating environments
- Special-purpose vehicles requiring highly customized configurations

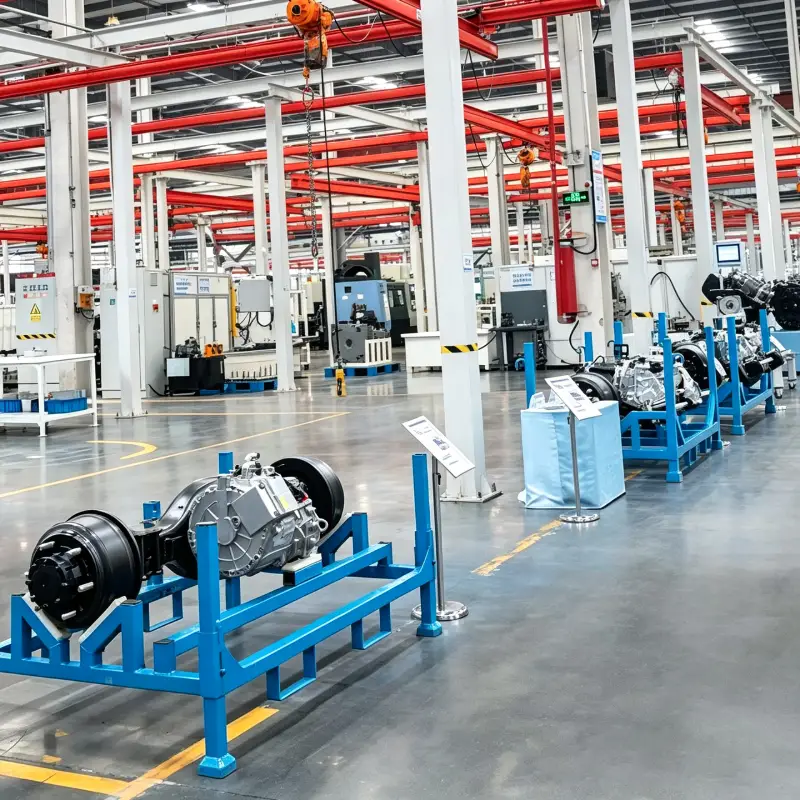

Manufacturing & Quality Assurance
Our electric axle systems undergo comprehensive validation covering structural durability, environmental reliability, and performance testing. Advanced simulation, rigorous testing procedures, and controlled manufacturing processes ensure stable performance and long-term reliability in demanding commercial vehicle applications.
Advanced Machining
Robotic loading and unloading integrated into machining and manufacturing processes.
Automated Manufacturing
Specialized Gear Production
Process Monitoring
Raw Material Control
Manufacturing Process
Inspection & Verification
Final Delivery
Proven Applications & Vehicle Integration
Our electric axles have entered series production and have been validated through large-scale vehicle applications across multiple commercial EV segments. From electric portal axles deployed in urban buses across European markets, including the UK and France, to heavy-duty truck e-axles applied in express delivery and high-speed logistics operations, our products have demonstrated reliable performance in real-world fleet environments.
With proven integration experience across different vehicle platforms and operating conditions, our electric axles support OEMs in accelerating vehicle electrification with mature architectures, validated reliability, and efficient system integration.

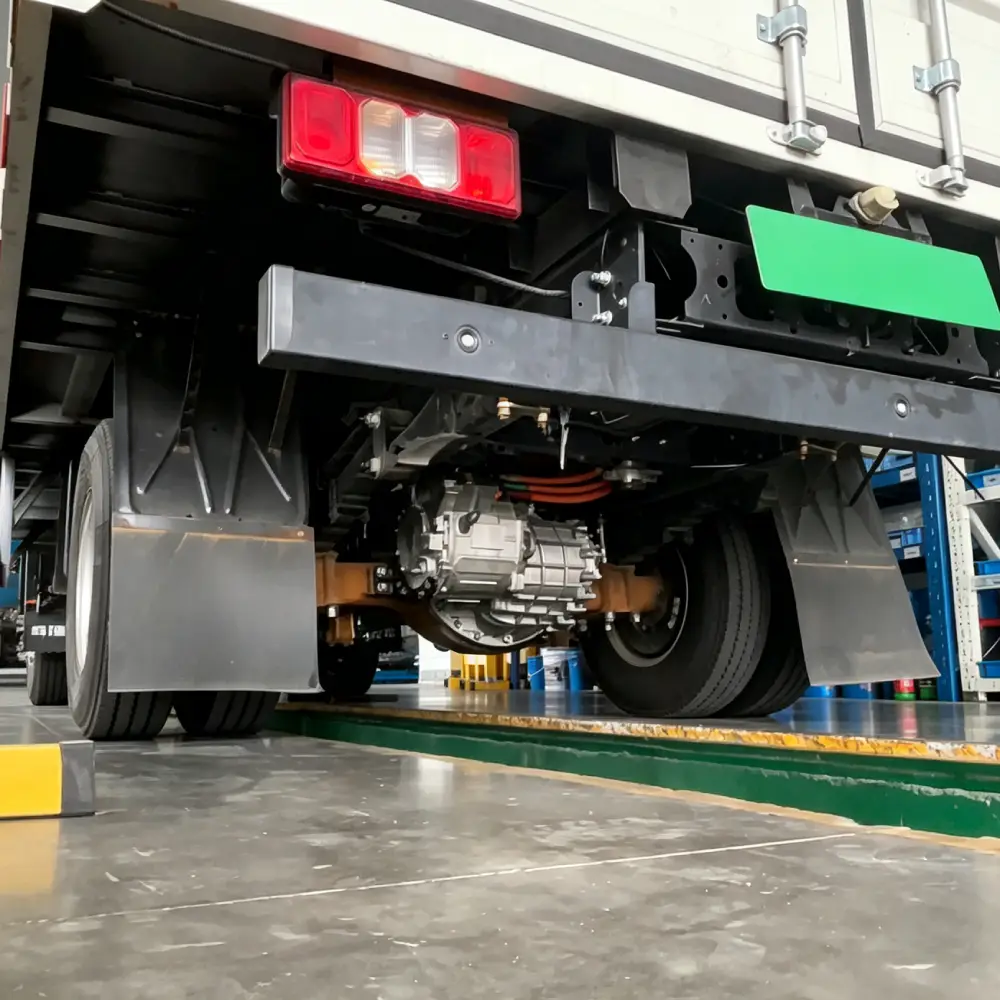

Technical Support for EV System Integration
Successful EV projects require effective technical communication between vehicle developers and system suppliers. We provide technical support for our EV systems, including product documentation, interface information, communication protocols, and engineering assistance during system integration.
Our support helps customers better understand system requirements, address technical issues during development and testing, and improve integration efficiency throughout the project lifecycle.
Our support includes:
- Review EV system configurations and identify potential risks
- Discuss vehicle requirements, interfaces, and application conditions
- Provide 3D and STEP files for layout and mechanical fit assessment
- Support sample installation, commissioning, and validation
- Support fault diagnosis and system troubleshooting
- Provide continuous technical communication throughout the project
Frequently Asked Questions
We provide a range of electric axle solutions for commercial electric vehicles, including integrated central e-axles, rigid wheel-end electric axles, and electric portal axles with independent suspension configurations.
Our solutions cover different vehicle platforms, from light commercial vehicles and buses to medium-duty trucks, heavy-duty trucks, and special-purpose vehicles.
Our electric axle solutions are designed for a wide range of commercial EV applications, including:
- Light commercial vehicles (LCVs) for urban delivery and logistics
- Electric buses and coaches, including low-floor bus applications
- Medium-duty trucks for urban distribution and municipal applications
- Heavy-duty trucks for logistics transportation, mining, ports, and industrial operations
- Special-purpose vehicles such as airport shuttle buses and municipal vehicles
The solutions are mainly optimized for urban, suburban, and highway operating conditions with relatively structured routes and predictable duty cycles.
Electric axles integrate key drivetrain components such as the motor, reduction gearbox, and axle assembly into a compact system, offering several advantages:
- Higher drivetrain efficiency through a shorter power transmission path
- Reduced installation space requirements and improved vehicle packaging flexibility
- Lower system weight compared with traditional centralized drive layouts
- Improved battery packaging flexibility for electric vehicle platforms
- Simplified vehicle integration with fewer mechanical components
These advantages help improve vehicle efficiency, range, and overall operating economy.
Our electric axle solutions are based on mature commercial vehicle architectures that have already achieved large-scale vehicle applications.
Key advantages include:
- Proven product architectures with extensive market validation
- Reliable structural design for commercial vehicle operating conditions
- Multiple configurations covering different vehicle loads and applications
- High integration design for improved efficiency and simplified installation
- Engineering experience from real-world vehicle deployment
Most of our electric axle platforms have already been validated through batch production applications, reducing development risks for OEM customers.
Yes. We support customization based on customer vehicle requirements while recommending the use of mature and validated product platforms whenever possible.
Customization options may include motor power adjustment and software calibration and control strategy optimization based on specific vehicle operating conditions
For software adaptation or deeper engineering customization, additional development costs may apply depending on project requirements and technical scope. Each project will be evaluated individually.
Yes. Our electric axles are developed based on production-oriented designs and have been applied in commercial vehicle projects.
Several product platforms have completed vehicle validation and entered batch production applications, providing OEM customers with proven solutions for new electric vehicle platforms.
Our electric axles are primarily designed for commercial vehicles operating in urban, suburban, and highway environments, including:
- Frequent stop-and-go urban transportation
- Daily logistics and distribution operations
- Fixed-route passenger transportation
- Highway logistics applications
- Short-distance heavy-duty operations
The solutions are optimized for applications with clear duty cycles and predictable operating requirements.
Reliability is verified through comprehensive engineering validation, including:
- Structural load and durability testing
- Combined vibration, load, and drive condition testing
- Full torque forward and reverse impact testing
- High and low temperature sealing validation
- Waterproof and harness durability testing
- Simulation-based strength and fatigue verification
These validation processes ensure stable performance under demanding commercial vehicle operating conditions.
