Electric Truck Chassis Solutions
Jenwyn Tech provides electric truck chassis solutions covering light-duty, medium-duty, and heavy-duty commercial vehicles.
Based on purpose-built EV chassis architectures, our platforms integrate key systems including electric drivetrain, battery system, chassis structure, braking, suspension, and thermal management to support efficient vehicle development.
With standardized rolling chassis platforms and flexible customization capability, we support applications ranging from urban logistics vehicles and delivery trucks to specialty commercial vehicles.
Urban Delivery Trucks
For last-mile delivery, urban logistics, and distribution operations requiring efficient zero-emission transportation.

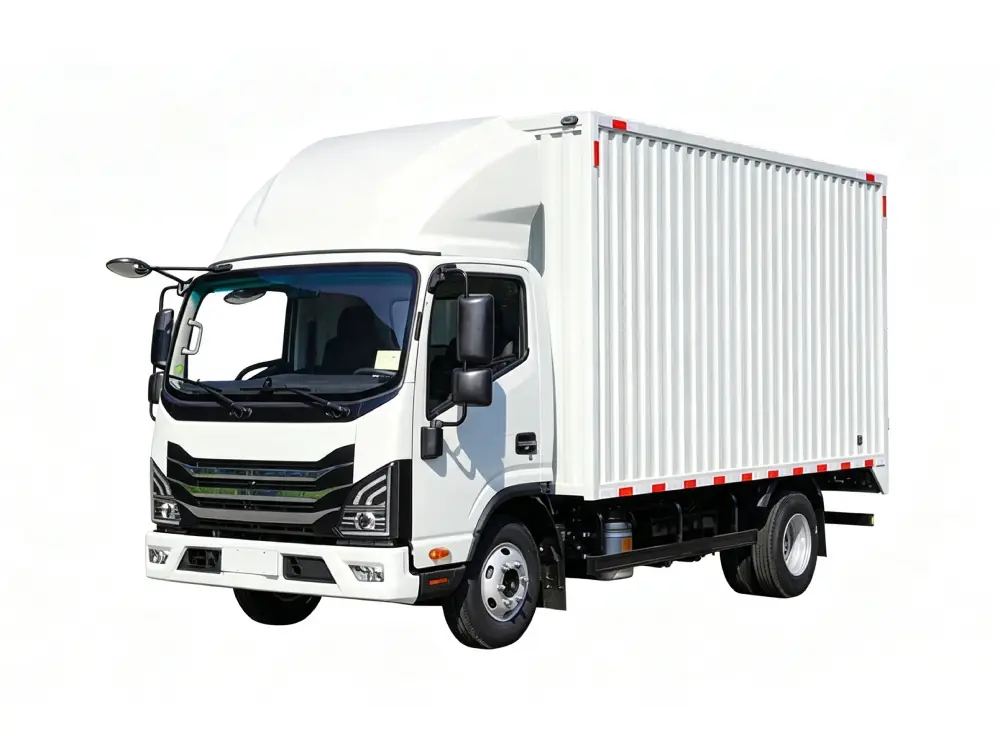

Box Trucks
Suitable for enclosed cargo transport, including e-commerce delivery, retail distribution, and commercial logistics applications.
Refrigerated Trucks
Designed for temperature-controlled transportation, supporting applications such as food delivery, cold chain logistics, and pharmaceutical transport.
Service & Utility Vehicles
Supporting various commercial applications, including maintenance vehicles, municipal service vehicles, and operational support vehicles.
Why Choose Jenwyn Tech Electric Truck Chassis
15+ Years of EV Development Expertise
Jenwyn Tech develops purpose-built electric truck chassis platforms based on EV-specific architectures rather than traditional vehicle conversions.
Our engineering capabilities cover:
- Electric drivetrain integration
- Battery system integration
- Electric axle solutions
- Chassis structure optimization
- Commercial vehicle applications
Scalable Solutions from LCVs to HCVs
Jenwyn Tech provides electric truck chassis platforms covering multiple commercial vehicle segments, from light-duty logistics vehicles to medium and heavy-duty trucks.
Our platforms support different:
- Vehicle weight classes
- Body configurations
- Operating conditions
- Market requirements
Proven International Delivery Experience
Jenwyn Tech electric chassis solutions have been successfully supplied to international markets, supporting electric mobility projects across regions including:
- Southeast Asia
- Latin America
Our overseas delivery experience enables us to better understand regional vehicle requirements, integration standards, and application conditions.

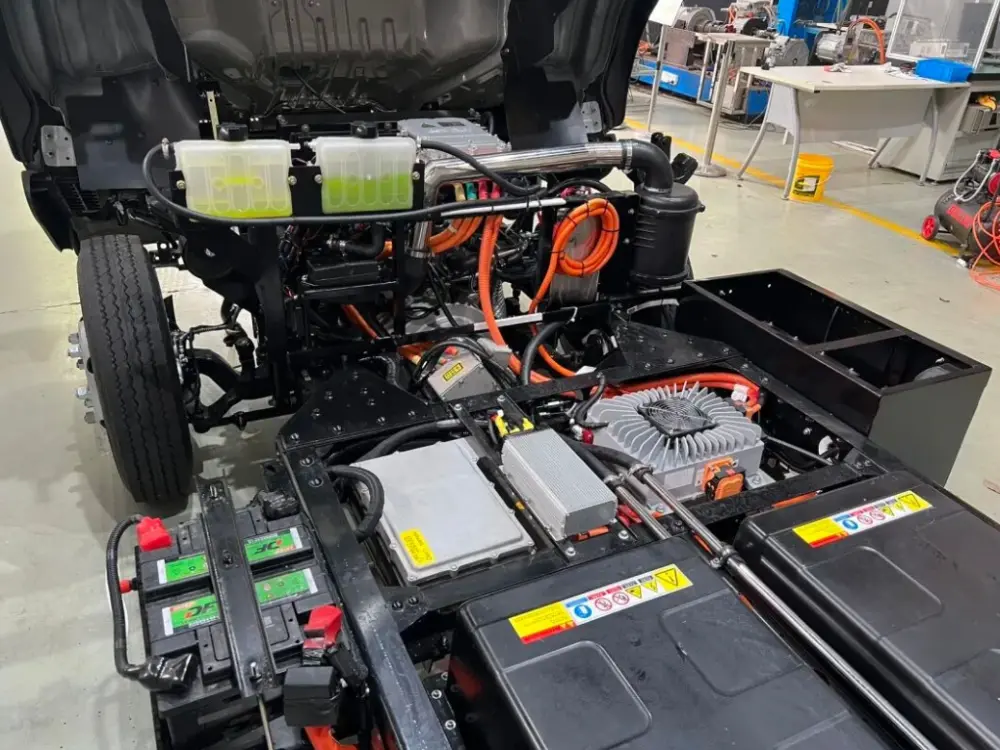

Integrated Electric Truck Chassis Platform
We develop integrated electric truck rolling chassis platforms covering light-duty, medium-duty, and heavy-duty commercial vehicles. Designed specifically for electric applications, our chassis solutions combine the electric powertrain, battery system, chassis structure, and supporting vehicle systems into a coordinated platform, helping customers reduce development complexity and accelerate vehicle deployment.
From urban delivery trucks to heavy-duty commercial vehicles, Jenwyn Tech provides scalable chassis solutions tailored to different payload requirements, operating conditions, and market applications.
- EV Traction Motor
- LFP Battery Packs
- DC Fast Charging
- Rigid Front Axle
- Rear Electric Axle
- Electric Power Steering
- Vacuum-Assisted Hydraulic Braking System
- Anti-Lock Braking System (ABS)
- Front Disc / Rear Drum Brakes
- LCD CAN Instrument Cluster
- High-Strength Manganese Steel Frame, Welded Construction
- Front Suspension
- Rear Suspension
Purpose-Built Electric Truck Chassis Design
Jenwyn Tech electric truck chassis adopt EV-oriented architectures that optimize component packaging, weight distribution, and system integration. This approach enables more efficient vehicle development compared with traditional platforms adapted for electrification.
Flexible Vehicle Integration Capability
Our electric truck chassis platforms support a wide range of vehicle body applications, including cargo box trucks, flatbed trucks, refrigerated trucks, utility vehicles, and special-purpose commercial vehicles. Flexible chassis configurations and mounting interfaces enable efficient adaptation to different vehicle requirements.
Commercial-Grade Durability & Reliability
Our electric truck chassis are engineered with robust structural designs, optimized load-bearing capability, and reliable system integration.
Electric Truck Chassis Portfolio
Our electric truck chassis portfolio covers multiple vehicle classes, with platforms ranging from 3.5T and 4.5T light commercial vehicles to 8T medium-duty trucks and to 18T heavy-duty applications. The portfolio provides different chassis configurations to address varying payload, operating range, and application requirements, with both pure electric and range-extended options available.
01

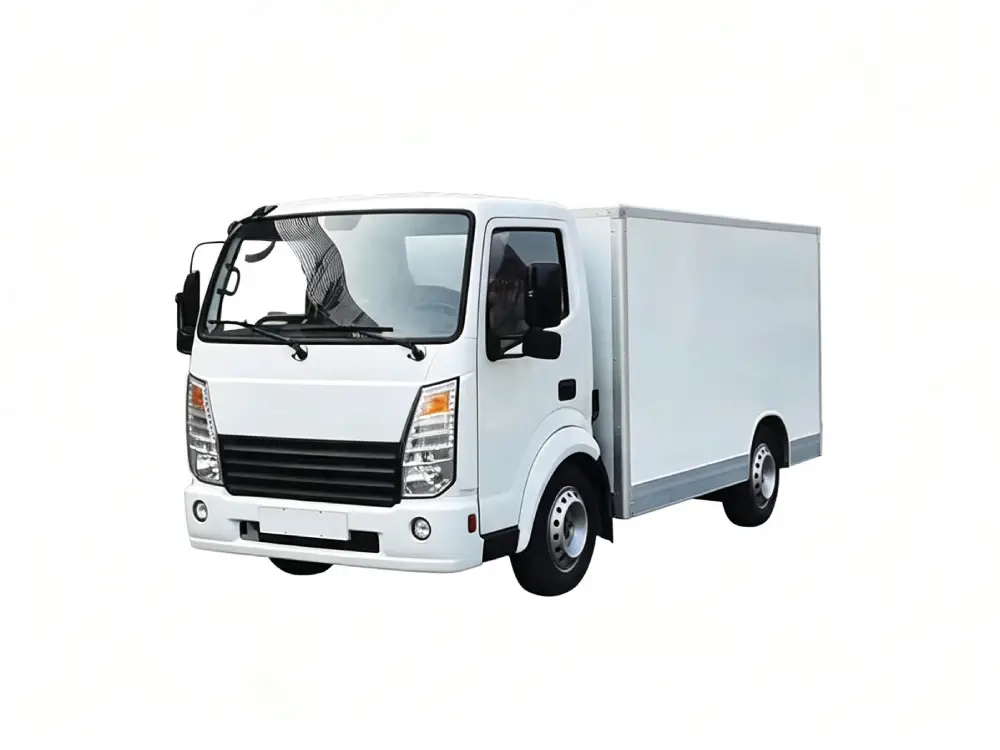

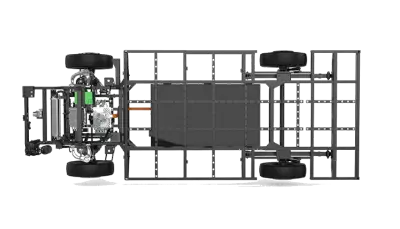

3.5 T Electric Truck Chassis
Designed for light-duty commercial vehicles, the 3.5T electric truck chassis provides an efficient platform for urban delivery, low-floor logistics vehicles, and customized commercial applications. The chassis supports different body configurations while maintaining compact dimensions and flexible integration capability.
Typical Applications
- Urban delivery trucks
- Box trucks
- Refrigerated trucks
- Mobile retail vehicles
- Service and specialty vehicles
Vehicle Configuration Example
|
Item
|
Specification
|
|---|---|
|
Dimension
|
5160*1900*2030 mm
|
|
Gross Vehicle Weight
|
3500 kg
|
|
Curb Weight
|
1680 kg
|
|
Payload Capacity
|
1540 kg
|
|
Traction Motor
|
30 kW / 60 kW PMSM
|
|
Battery System
|
46 kWh LFP
|
|
Driving Range
|
>235 km (WLTP)
|
* For additional configurations and customized solutions, please contact us at: contact@jenwyntech.com
02
5 T Electric Truck Chassis
Designed with a purpose-built EV chassis architecture, this platform features an integrated electric axle solution to improve packaging efficiency, reduce mechanical losses, and enhance overall vehicle performance.
Typical Applications
- Logistics trucks
- Box trucks
- Refrigerated trucks
- Emergency service vehicles
- Customized commercial vehicles
Vehicle Configuration Example
|
Item
|
Specification
|
|---|---|
|
Dimension
|
6550*2000*2255 mm
|
|
Gross Vehicle Weight
|
5000 kg
|
|
Curb Weight
|
2600 kg
|
|
Wheelbase
|
3730 mm
|
|
Traction Motor
|
60 kW / 120 kW PMSM
|
|
Battery System
|
≥100 kWh LFP
|
|
Driving Range
|
≥300 km (NEDC)
|
|
Maximum Speed
|
100 km/h
|
|
Maximum Gradeability
|
25%
|
* For additional configurations and customized solutions, please contact us at: contact@jenwyntech.com
03

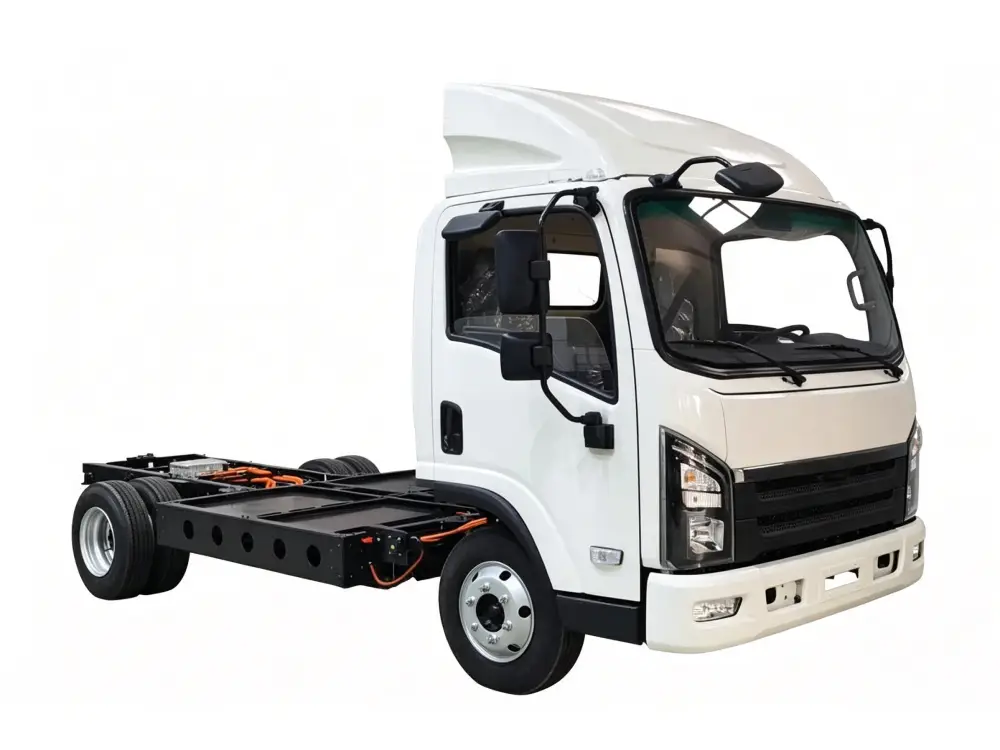

8 T Electric Truck Chassis
Designed for medium-duty commercial transportation, the 8T electric truck chassis provides a robust platform for logistics, distribution, and regional transport applications.
Typical Applications
- Logistics trucks
- Box trucks
- Refrigerated trucks
- Emergency service vehicles
- Customized commercial vehicles
Vehicle Configuration Example
|
Item
|
Specification
|
|---|---|
|
Dimension
|
5995*2040*2255 mm
|
|
Gross Vehicle Weight
|
8000 kg
|
|
Payload Capacity
|
5420 kg
|
|
Wheelbase
|
3360 mm
|
|
Driving Range
|
≥200 km (WLTP)
|
|
Maximum Speed
|
≥100 km/h
|
|
Maximum Gradeability
|
≥20%
|
|
Traction Motor
|
70 kW / 140 kW
|
|
Battery System
|
84.48 kWh LFP
|
|
Charging
|
DC fast charging
|
* For additional configurations and customized solutions, please contact us at: contact@jenwyntech.com
Customized Electric Truck Chassis Solutions
Beyond standardized electric bus chassis platforms, Jenwyn Tech provides customized electric truck chassis solutions to meet specific vehicle requirements, body configurations, and operating conditions. Our engineering team works with customers to optimize chassis configurations for various commercial EV applications, including: electric buses, electric trucks, off-road electric vehicles, special-purpose commercial vehicles.
01. Application Assessment
We analyze customer requirements and vehicle operating conditions to define the appropriate chassis solution. Key considerations include:
- Vehicle type and application
- Operating environment
- Payload requirements
- Duty cycle and driving conditions
02. Chassis Solution Definition
Based on application requirements, our engineering team defines the suitable chassis configuration and technical specifications.
- Chassis architecture selection
- System configuration
- Component matching
- Performance requirements
03. Engineering Design
We optimize the chassis design to ensure compatibility with different vehicle bodies and customer integration requirements. Including:
- Chassis layout optimization
- Mounting interface design
- Electrical interface definition
- Technical documentation
04. Technical Collaboration
Our engineering team works closely with customer technical teams throughout the project to support smooth chassis integration.
Support includes:
- Technical communication
- Engineering coordination
- Interface verification
- Integration assistance
05. Validation & Delivery
Before delivery, chassis undergo engineering verification and functional testing to ensure reliability for the intended application.
Including:
- System performance verification
- Functional testing
- Quality inspection
- Delivery preparation
06. After-Delivery Support
Following delivery, Jenwyn Tech continues to provide technical assistance throughout vehicle integration and operation.
Support includes:
- Installation guidance
- Remote technical support
- Troubleshooting assistance
- Engineering consultation
Engineering Support for EV System Integration
Successful EV projects require effective technical communication between vehicle developers and system suppliers. We provide technical support for our EV systems, including product documentation, interface information, communication protocols, and engineering assistance during system integration.
Our support helps customers better understand system requirements, address technical issues during development and testing, and improve integration efficiency throughout the project lifecycle.
Our support includes:
- Review EV system configurations and identify potential risks
- Discuss vehicle requirements, interfaces, and application conditions
- Provide 3D and STEP files for layout and mechanical fit assessment
- Support sample installation, commissioning, and validation
- Support fault diagnosis and system troubleshooting
- Provide continuous technical communication throughout the project
Delivered to Global Commercial Vehicle Markets
These electric chassis platforms have been supplied in volume to commercial vehicle projects across international markets, with deliveries to South Africa, Mexico, South Korea, Ecuador, the Philippines, Thailand and other countries.

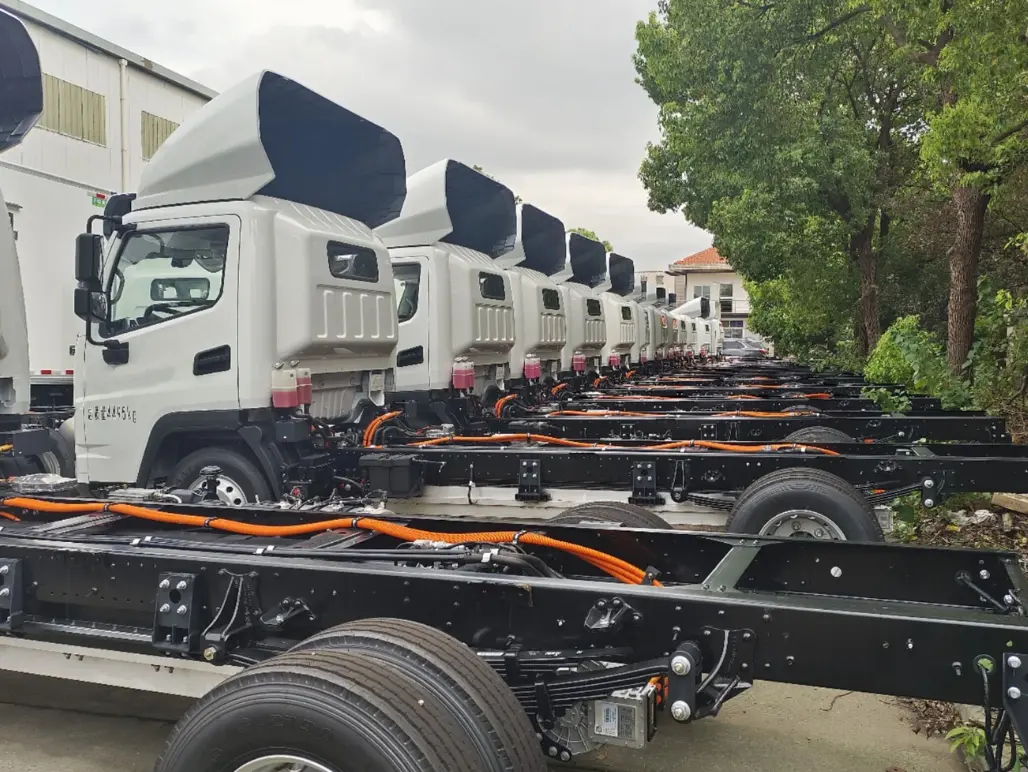

The gallery below shows selected chassis units during production, delivery and vehicle projects, providing a view of Jenwyn Tech’s electric chassis platforms in real-world commercial vehicle applications.
Frequently Asked Questions
Jenwyn Tech provides electric truck chassis platforms covering light-duty, medium-duty, and heavy-duty commercial vehicles, from 3.5T and 4.5T light commercial vehicles to 8T medium-duty trucks and also solutions for vehicles to 18T.
Yes. Depending on the vehicle class and application requirements, Jenwyn Tech supports both pure electric and range-extended electric truck chassis configurations.
Our electric truck chassis can be used for a wide range of commercial applications, including urban delivery, logistics and distribution, refrigerated transportation, service and utility vehicles, and special-purpose commercial vehicles.
Yes. The chassis platforms are designed to support different commercial vehicle body configurations, including cargo box bodies, flatbeds, refrigerated bodies, and various special-purpose bodies. Chassis specifications and mounting interfaces can be adapted to specific vehicle requirements.
Yes. Our electric truck chassis are developed around electric powertrain requirements rather than simply adapting conventional vehicle platforms for electrification. This allows key components and systems to be arranged according to the requirements of electric commercial vehicles.
Selected platforms use integrated electric axle solutions that combine the traction motor, reduction system, and axle assembly. This configuration helps optimize drivetrain packaging, reduce mechanical complexity, and improve transmission efficiency.
Battery configuration depends on the chassis platform and vehicle application. Available solutions include lithium iron phosphate (LFP) battery systems with different capacities and voltage configurations to meet vehicle performance and operating requirements.
Yes. Jenwyn Tech supports commercial EV projects for international markets and can work with customers on chassis configuration, technical requirements, and vehicle integration according to their target application and market conditions.
