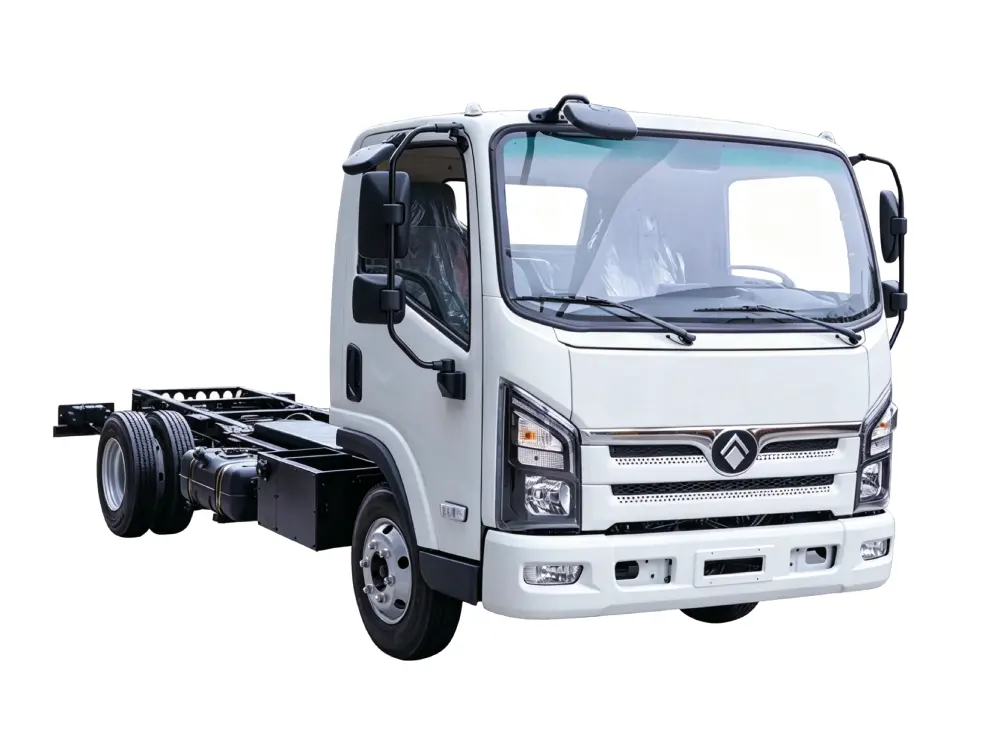

6T / 8T Range-Extended Electric Truck Chassis Platforms
We provide 6T / 8T range-extended electric truck chassis platforms for commercial vehicle OEMs, truck body manufacturers, and vehicle assemblers. The platform combines electric powertrain with an onboard range-extender system that generates electricity to support vehicle operation. This allows the truck to retain electric drive while adding an onboard energy source beyond the traction battery.
The architecture is worth considering for regional distribution, high-utilization logistics, and other applications where daily mileage or limited charging opportunities can make battery-only operation more challenging.
Powertrain and battery configurations can be evaluated according to vehicle requirements, operating conditions, and target-market needs. Jenwyn Tech supports chassis configuration and system integration for commercial vehicle development projects.
Flexible Energy Configuration
Evaluate different fuel options and battery capacities to match vehicle requirements, route profiles, and local energy infrastructure.
Designed for Demanding Duty Cycles
Consider range-extended electric drive for longer daily routes, high vehicle utilization, or operations with limited charging opportunities.
Integrated Electric Drive System
Combine an electric traction motor and integrated rear e-axle with the range-extender system for commercial truck development.
Reduced Development Workload
Build on an established chassis and powertrain platform, allowing your team to focus on body integration, vehicle adaptation, and market-specific requirements.
6T / 8T
5,800 / 8,500 kg
100 kW / 130 kW
≥ 600 km

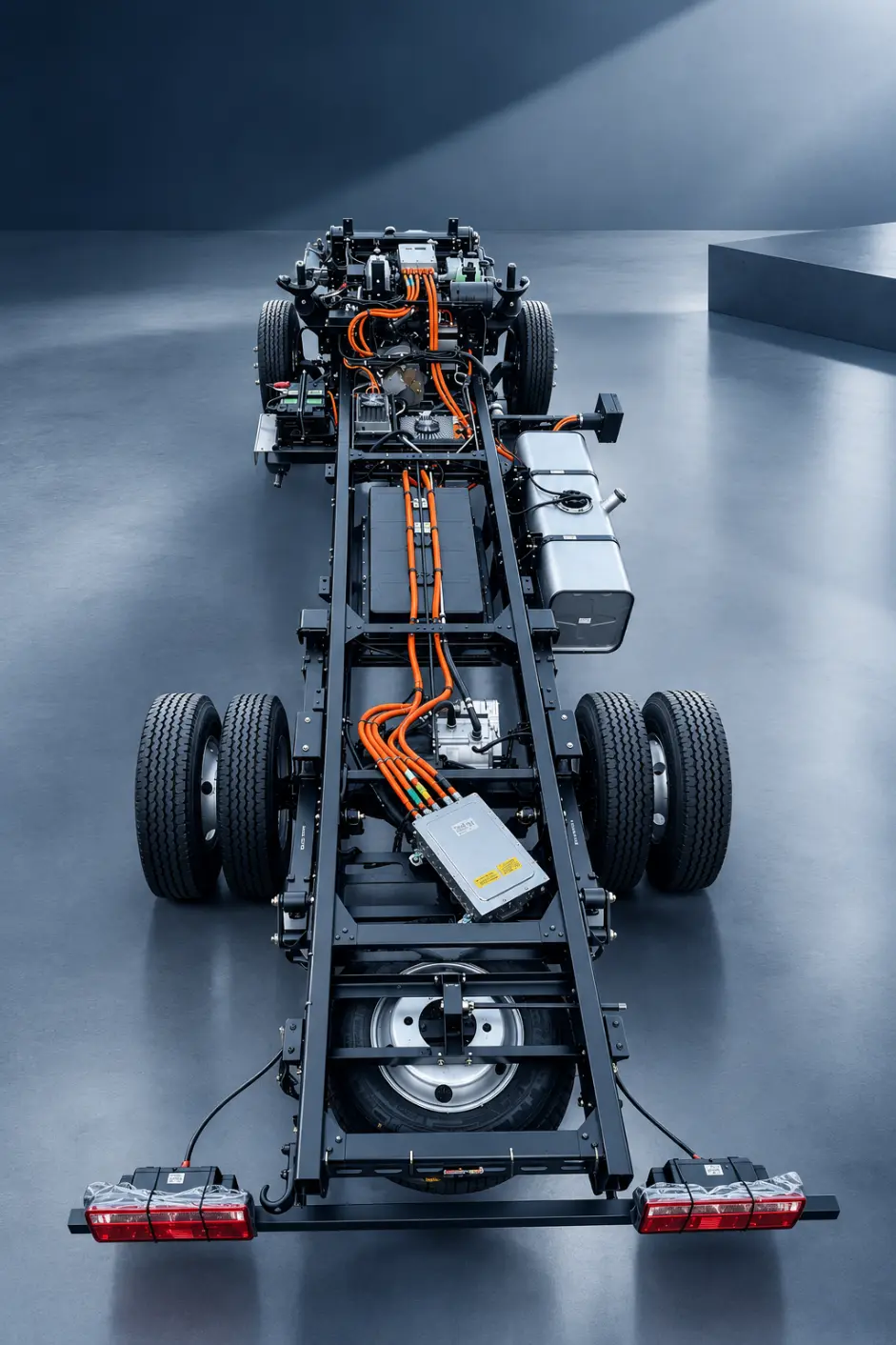

Range-Extended Electric Truck Chassis Overview
Jenwyn Tech’s range-extended electric truck chassis platform provides a development foundation for OEMs, truck body manufacturers, and vehicle assemblers. Available in 6T and 8T configurations, it combines electric drive with onboard power generation for logistics applications where longer daily routes or limited charging opportunities are key considerations.
Integrated Range-Extended Powertrain
The platform combines an engine-generator system, traction battery, electric drive, and electronic controls. The generator supplies electricity to support vehicle operation, while the traction motor drives the wheels.
Multiple Fuel Options
The range-extender system supports M100 methanol, with diesel and LNG options also available. Fuel selection can be matched to local availability, operating requirements, and target-market conditions.
Rear Integrated Electric Drive Axle
The integrated rear e-axle combines the traction motor and drive axle into a compact unit, optimizing chassis space for battery packaging and cargo capacity.
Flexible Chassis and Body Integration
The platform supports the development of cargo trucks, refrigerated trucks, and other commercial vehicle applications. Body integration considers mounting interfaces, weight distribution, axle loads, and electrical connections.
Integrated Electrical and Control Systems
The coordinated chassis and powertrain systems help reduce component-level integration work. Electrical interfaces, wiring arrangements, and control requirements can be assessed for each vehicle project.
Applications for the Range-Extended Electric Truck Chassis Platforms
The Jenwyn Tech 6T / 8T range-extended electric truck chassis platforms can be evaluated for commercial logistics applications where daily mileage, vehicle utilization, or charging access may make battery-only operation less practical. The onboard range-extender system provides an additional source of electrical energy during operation. Vehicle suitability depends on the duty cycle, fuel availability, body configuration, and project-specific requirements.
High-Utilization Urban and Suburban Delivery
For parcel delivery, e-commerce distribution, wholesale supply, and supermarket replenishment involving frequent trips or extended operating hours. Onboard power generation may provide greater scheduling flexibility when charging windows are limited.
Configuration considerations: Stop-start duty cycle, daily mileage, operating shifts, depot charging, fuel availability, and operating costs.
Temperature-Controlled Transport
For refrigerated delivery of food, beverages, and other temperature-sensitive goods. The chassis and energy system should account for both traction requirements and the additional energy demand of refrigeration equipment.
Configuration considerations: Insulated body weight, refrigeration power demand, operating temperature, payload, daily route, and total energy consumption.
Regional and Inter-Site Logistics
For cargo transport between warehouses, distribution centers, industrial facilities, and nearby cities. The range-extended architecture is worth evaluating for longer routes where charging stops may affect delivery schedules.
Configuration considerations: Daily mileage, payload, route distance, road gradients, fuel consumption, and refueling access.
Industrial and Customized Applications
For factory logistics, industrial supply routes, and application-specific commercial trucks operating on defined schedules. These use cases can be assessed based on actual vehicle utilization, energy requirements, and the availability of suitable fuel and maintenance support.
Configuration considerations: Operating hours, route profile, body mounting interfaces, axle loads, auxiliary power demand, fuel supply, and local regulations.
6T / 8T Range-Extended Electric Truck Chassis Platforms Specifications
| Model | HEV42H-6T | HEV42H-8T |
|---|---|---|
| Curb Weight | ≤ 2,680 kg | ≤ 3,050 kg |
| GVW | 5,800 kg | 8,500 kg |
| Overall Dimensions (L × W × H) | 5,996 × 2,040 × 2,255 mm | 5,996 × 2,040 × 2,255 mm |
| Wheelbase | 3,300 mm | 3,300 mm |
| Rated Motor Power | 60 kW | 70 kW |
| Peak Motor Power | 120 kW | 140 kW |
| Range-Extender Generator Rated / Peak Power | 100 / 130 kW | 100 / 130 kW |
| Standard Battery Capacity | 63.62 kWh | 63.62 kWh |
| Battery Nominal Voltage | 334.88 V | 334.88 V |
| Maximum Speed | ≥ 90 km/h | ≥ 90 km/h |
| Maximum Gradeability | ≥ 20% | ≥ 20% |
| Front Axle Rating | 2.3 t | 3.0 t |
| Rear E-Axle Rating | 3.5 t | 5.5 t |
| Listed Driving Range | ≥ 600 km (WLTP) | ≥ 600 km (WLTP) |
| Range-Extender Fuel | M100 Methanol | M100 Methanol |
| Braking System | Dual-circuit hydraulic vacuum-assisted braking; front disc / rear drum; ABS | Dual-circuit air braking; front disc / rear drum; ABS |
Why Choose Jenwyn Tech for Your Range-Extended Electric Truck Project?
Commercial EV Engineering Experience
With 15+ years of automotive industry experience, Jenwyn Tech supports commercial vehicle projects involving electric powertrain systems, chassis platforms, and related components.
Chassis and Powertrain Solutions
Beyond range-extended electric truck chassis, we supply traction motors, integrated e-axles, and other EV powertrain components. Customers can source related systems and components through one supplier.
Flexible Fuel Options
The range-extender system supports methanol M100, with diesel and LNG options also available. Fuel selection and battery configuration can be matched to vehicle requirements and local market conditions.
Our Working Process
01. Application Assessment
We analyze customer requirements and vehicle operating conditions to define the appropriate chassis solution. Key considerations include:
- Vehicle type and application
- Operating environment
- Payload requirements
- Duty cycle and driving conditions
02. Chassis Solution Definition
Based on application requirements, our engineering team defines the suitable chassis configuration and technical specifications.
- Chassis architecture selection
- System configuration
- Component matching
- Performance requirements
03. Engineering Design
We optimize the chassis design to ensure compatibility with different vehicle bodies and customer integration requirements. Including:
- Chassis layout optimization
- Mounting interface design
- Electrical interface definition
- Technical documentation
04. Technical Collaboration
Our engineering team works closely with customer technical teams throughout the project to support smooth chassis integration.
Support includes:
- Technical communication
- Engineering coordination
- Interface verification
- Integration assistance
05. Validation & Delivery
Before delivery, chassis undergo engineering verification and functional testing to ensure reliability for the intended application.
Including:
- System performance verification
- Functional testing
- Quality inspection
- Delivery preparation
06. After-Delivery Support
Following delivery, Jenwyn Tech continues to provide technical assistance throughout vehicle integration and operation.
Support includes:
- Installation guidance
- Remote technical support
- Troubleshooting assistance
- Engineering consultation
Support for SKD/CKD and Local Assembly Projects
- For SKD/CKD projects, supply scope can be tailored to local assembly capabilities, import regulations, and the required level of vehicle integration.
- Supply options may include a rolling chassis, selected EV systems, or a project-specific component package, subject to technical review and confirmation for each program.
Frequently Asked Questions
Yes. Jenwyn Tech can provide both left-hand drive (LHD) and right-hand drive (RHD) solutions, depending on the vehicle platform and target market requirements. Please share your intended market and vehicle specifications so we can assess the suitable configuration.
Yes. Battery capacity can be customized according to your vehicle range, payload, packaging, and project requirements. We offer standard battery solutions from established suppliers such as CATL, Gotion, and BYD, and can also evaluate customer-designated battery brands based on technical compatibility and availability.
We can supply bare chassis, rolling chassis, and complete vehicle solutions, depending on the project requirements. Complete vehicle options can include refrigerated trucks and other application-specific commercial vehicles.
Yes. In addition to complete chassis platforms, we can supply EV powertrain systems and components, including electric motors, electric drive axles, range-extenders, and battery systems. The supply scope can be tailored to your vehicle development and integration needs.
Yes. Our VCU software is developed in-house, allowing us to evaluate project-specific adjustments to vehicle control strategies and integration requirements. The scope of customization depends on the vehicle architecture, technical requirements, and project feasibility.
We support projects with relatively low initial order quantities compared with many large OEM suppliers. The MOQ depends on the selected product, configuration, and degree of customization. Contact us with your project requirements to discuss a suitable arrangement.
Our electric chassis platforms have been exported to markets including South Korea, the Philippines, South Africa, Ecuador, Egypt, and Japan. This international project experience helps us understand different market requirements and support customers developing commercial EV projects for their local markets.
Customers can share their vehicle requirements, including vehicle type, operating conditions, target market, body configuration, and performance requirements.
Our engineering team will evaluate the application and recommend a suitable chassis configuration or customized solution.
