For fleet operators, cold-chain logistics companies, and businesses handling temperature-sensitive deliveries, choosing the right refrigerated vehicle means balancing payload, driving range, refrigeration performance, and operating cost.

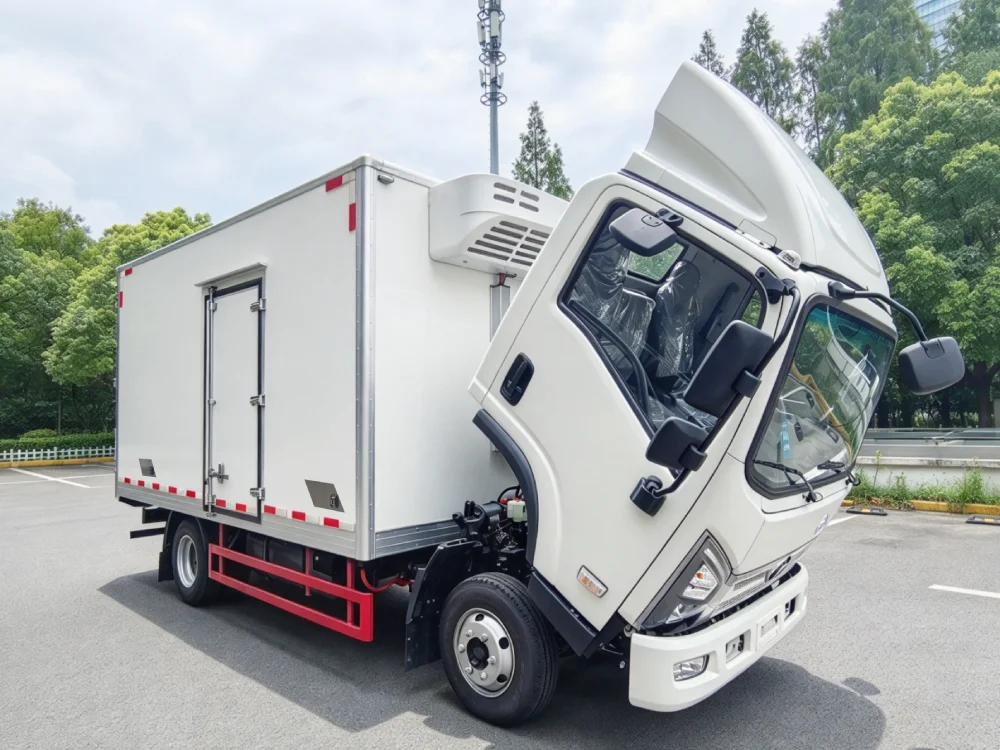

Our 4.5T electric refrigerated truck is designed for urban and suburban temperature-controlled delivery, including the transport of fresh produce, dairy products, pharmaceuticals, and other temperature-sensitive goods. It combines a battery-electric powertrain with a dedicated refrigeration system to support daily delivery operations while reducing fuel consumption and routine maintenance costs compared with conventional diesel refrigerated trucks.
Below is an overview of the vehicle’s key specifications and technical features.
1. Strong Power and Gradeability
Urban and suburban delivery routes can involve steep gradients, frequent stops, and varying road conditions. Equipped with a high-performance Permanent Magnet Synchronous Motor (PMSM), this electric refrigerated truck provides:
- Peak Power: 145 kW (75 kW rated)
- Peak Torque: 330 N·m
- Max. Gradeability: ≥25% (at GVW 4,495 kg)

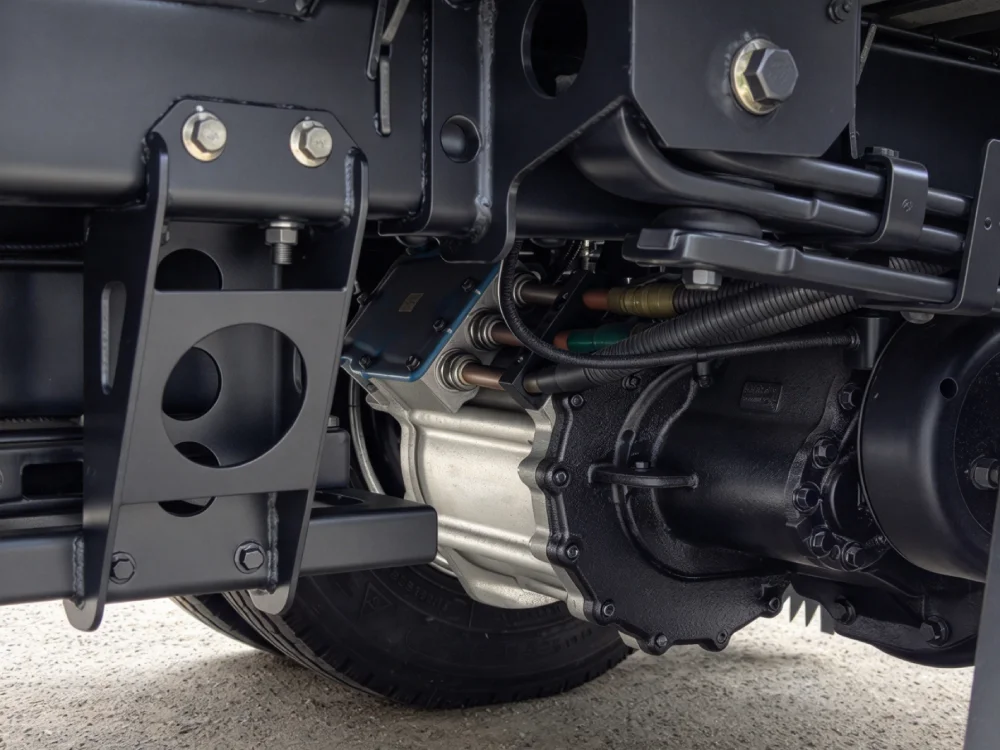

The truck uses a rear-engine, rear-wheel-drive (RR) layout with a 3.5T integrated electric drive axle. By integrating the motor, reducer, and axle into a compact assembly, the electric drive axle reduces drivetrain weight and packaging space while simplifying the overall powertrain structure.
The combination of high motor output and an integrated electric drive axle provides strong low-speed traction and climbing capability, supporting fully loaded delivery operations on routes with frequent gradients and complex urban road conditions.
2. Flexible Battery Configurations & Reliable Range
Operational flexibility is essential for fleet planning. We offer smart power choices tailored to exact operational radii:

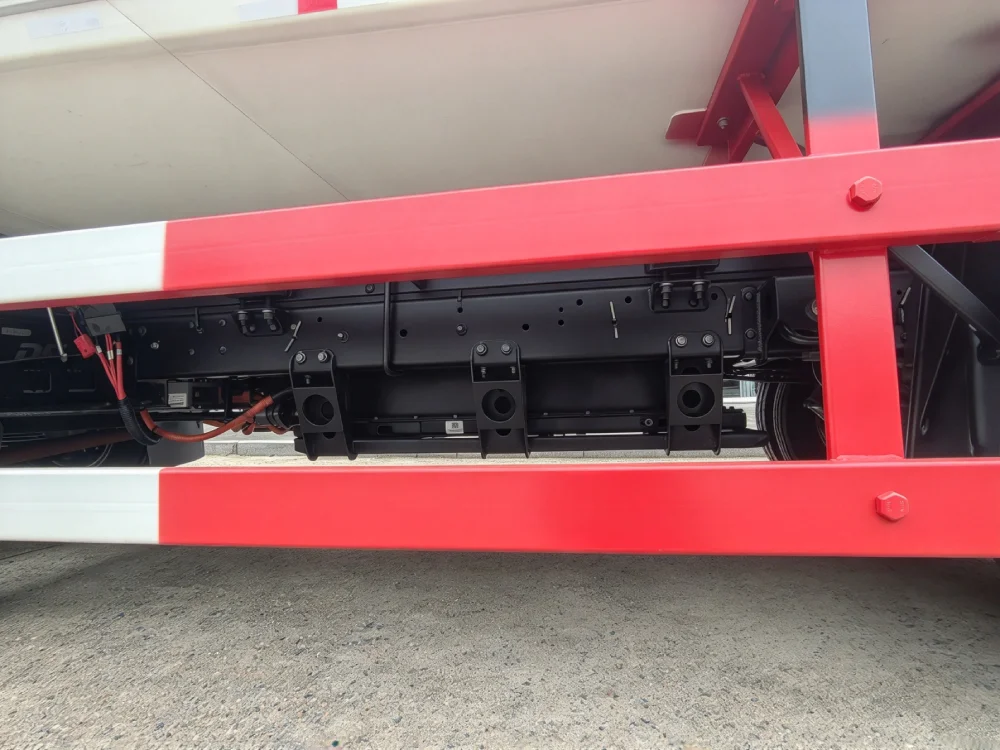

- Standard Battery Capacity: 73.14 kWh powered by Gotion (2026 Edition) cells, delivering a practical WLTP driving range of ≥200 km (with 15% SOC remaining).
- Optional Extended Capacity: An optional 115 kWh large-capacity battery pack is available for longer routes.
- Fast Charging: Supports DC Fast Charging to minimize downtime between delivery shifts.
3. 80 mm High-Density PU Thermal Insulation
For cold chain logistics operating in hot and humid climates (such as Southeast Asia, Latin America, and parts of Africa), insulation performance is critical:

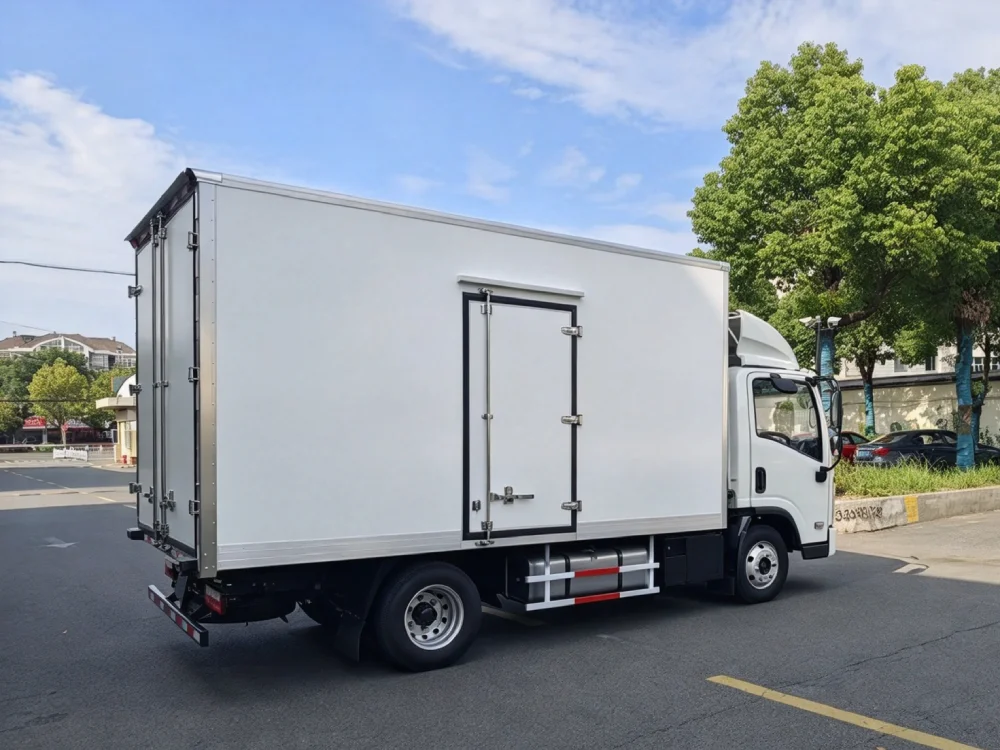

- Cargo Box Dimensions: External 4200×2100×2100 mm / Internal 4050×1900×1900 mm, offering an optimized volume for last-mile delivery.
- Advanced Insulation: The cargo box is built with 80mm thick high-density polyurethane (PU) foam panels (density ≥42 kg/m ³). This ensures minimum thermal leakage, keeping perishable goods safe and reducing the workload on the refrigeration unit.
4. Heavy-Duty Chassis: Rugged & Easy to Maintain
Built on a heavy-duty commercial truck foundation rather than a modified passenger platform:
- Suspension: Traditional 3-leaf front and 3+1-leaf rear spring suspension designed for heavy loads and rough road durability.
- Payload Capacity: Gross vehicle weight of 4,495 kg (actual max load up to 2,410 kg), allowing maximum cargo transport without compromising structural integrity.
- Maintenance-Friendly: Features standard dual-circuit hydraulic brakes and a variable cross-section welded frame, ensuring that local mechanics worldwide can service it easily.
5. Technical Specifications for the 4.5-ton Electric Refrigerated Truck
The standard parameters and configuration details outlined above are provided for your general reference. Because operational environments and load requirements vary across global markets, we offer tailored adjustments. For precise technical data sheets, or to discuss specific parameter configurations, please feel free to contact our team.
| No. | Item | Specifications | Remarks |
|---|---|---|---|
| Vehicle | |||
| 1 | Curb Weight (Kg) | ≤3590 | |
| 2 | Payload Mass (kg) | 905 | Actual maximum 2410kg |
| 3 | Gross Vehicle Weight (Kg) | 4495 | Actual maximum 6000kg |
| 4 | Overall Dimensions (L × W × H) (mm) | 5995×2200×3250 | |
| 5 | Wheelbase (mm) | 3300 | |
| 6 | Front/Rear Overhang (mm) | 1140/1555 (TBD) | |
| 7 | Front/Rear Track (mm) | 1580/1560 | |
| 8 | Max. Gradeability | ≥25% (GVW 4495Kg) | |
| 9 | Max. Climbing Speed (km/h) | ≥20 | |
| 10 | Max. Speed (km/h) | ≥100 | |
| 11 | Braking Distance (Full load, 30km/h) (m) | ≤10 | |
| 12 | Min. Turning Diameter (m) | ≤13.9 | |
| 13 | Approach/Departure Angle (°) | 20/18 | |
| 14 | Min. Ground Clearance (mm) | ≥210 | |
| 15 | Driving Range (WLTP) (km) | ≥200 (GVW 4495Kg) | Remaining SOC 15% |
| Chassis | |||
| 16 | Suspension (Front) | 3-leaf spring | |
| 17 | Suspension (Rear) | 3+1 leaf spring | |
| 18 | Braking (Service) | Dual-circuit hydraulic brake, vacuum booster, front disc & rear drum | |
| 19 | Braking (Parking) | Mechanical soft shaft, central drum brake | |
| 20 | Frame | Variable cross-section welded frame | |
| 21 | Axles (Front) | 2.2T I-beam axle | |
| 22 | Axles (Rear) | 3.5T integrated electric drive axle | |
| 23 | Steering | Electro-hydraulic power steering, recirculating ball steering gear | |
| 24 | Tire Model | 6.50R16 (10-ply) | Single tire load 975kg; Dual tire 850kg |
| Cab & Electrics | |||
| 25 | Seating Capacity (including driver) | 2 | |
| 26 | Interior Trim | Main dashboard, left/right side panels, defroster vents color & accessories in dark grey; equipped with face-blowing, defrosting, foot-blowing functions per normal requirements | |
| 27 | Steering Wheel | Three-spoke steering wheel | |
| 28 | Shifter | Lever-type electric vehicle shifter | |
| 29 | Low Voltage System (V) | 24 (TBD) | Normal working voltage 22–28V (DC) |
| 30 | Cab Heating | PTC heater | |
| 31 | Cab Cooling | Displacement 27ml, 250–450Vdc | |
| 32 | Multimedia | MP3 player | |
| 33 | Door Power Windows | Electric | |
| 34 | Rearview Mirrors | Manual left/right rearview mirrors, front-view mirror, blind-spot mirror on right door | |
| Cargo Box | |||
| 35 | External Dimensions (mm) | 4200×2100×2100 | |
| Internal Dimensions (mm) | 4050×1900×1900 | ||
| 36 | Rear Floor Height from Ground (Unloaded) (mm) | ≤950 | |
| 37 | Cargo Box Material | High-density polyurethane (PU) foam panel, thickness 80mm | Density ≥42kg/m³ |
| E-Powertrain & HV Systems | |||
| 40 | PMSM Drive Motor & Controller (Rated/Peak Power) | 75/145 kW | |
| 41 | PMSM Drive Motor & Controller (Rated/Peak Torque) | 150/330 N·m | |
| 42 | PMSM Drive Motor & Controller (Rated/Peak Speed) | 3800/12000 rpm | |
| 43 | Drive Type | Rear-engine, rear-wheel drive (RR) | |
| 44 | Transmission | Fixed-ratio reducer | Main reduction ratio 16.029 |
| 45 | Power Battery (Capacity) | 73.14 kWh | 190A·h, Gotion (2026 Edition). Optional large capacity: 115 kWh, 605.36V |
| 46 | Power Battery (Rated Voltage) | 386.4 V | |
| 47 | Two-in-One Unit | 1.5kW DC + PDU | |
| 48 | Charging | DC Fast Charging |
Flexible Configuration Options to Suit Your Fleet Needs
We understand that different markets and businesses have unique requirements. Beyond standard configurations, this electric refrigerated truck platform is available with modular setup options:

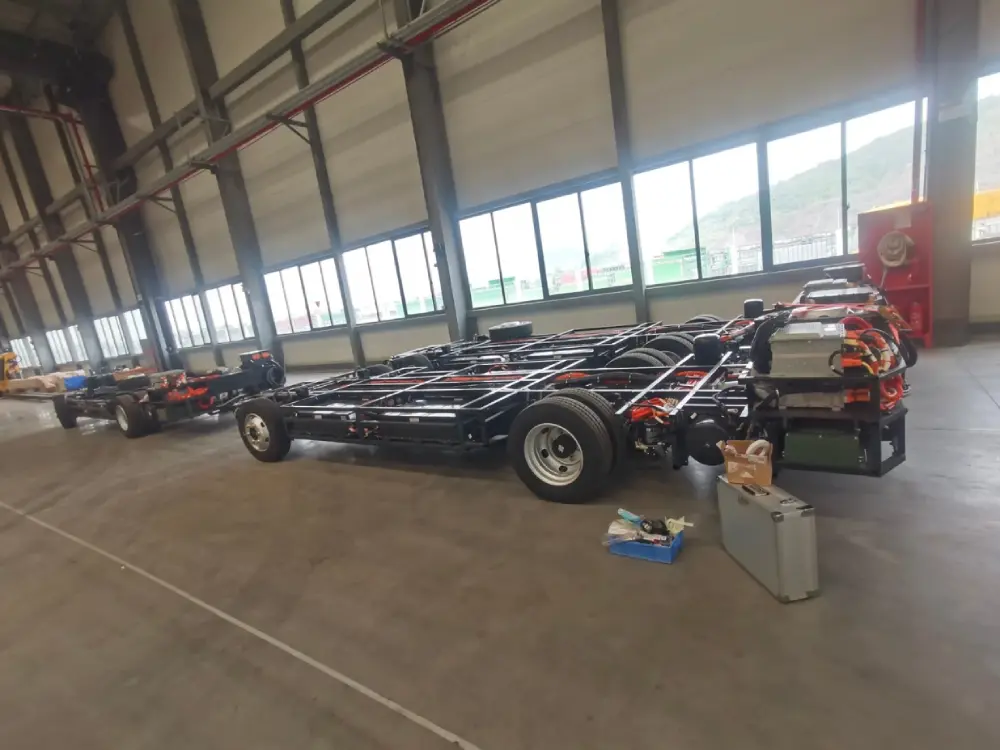

- Platform Options: Available as Chassis Only, Chassis + Cab, or Complete Vehicle.
- Body Variations (for Complete Vehicles): Can be configured as Refrigerated or Non-Refrigerated (cargo box/stake body) depending on your application.
- Powertrain Options: Available in Pure Electric (BEV) or Methanol Range-Extended (Methanol EREV) variants to accommodate varying infrastructure and long-distance operational needs.

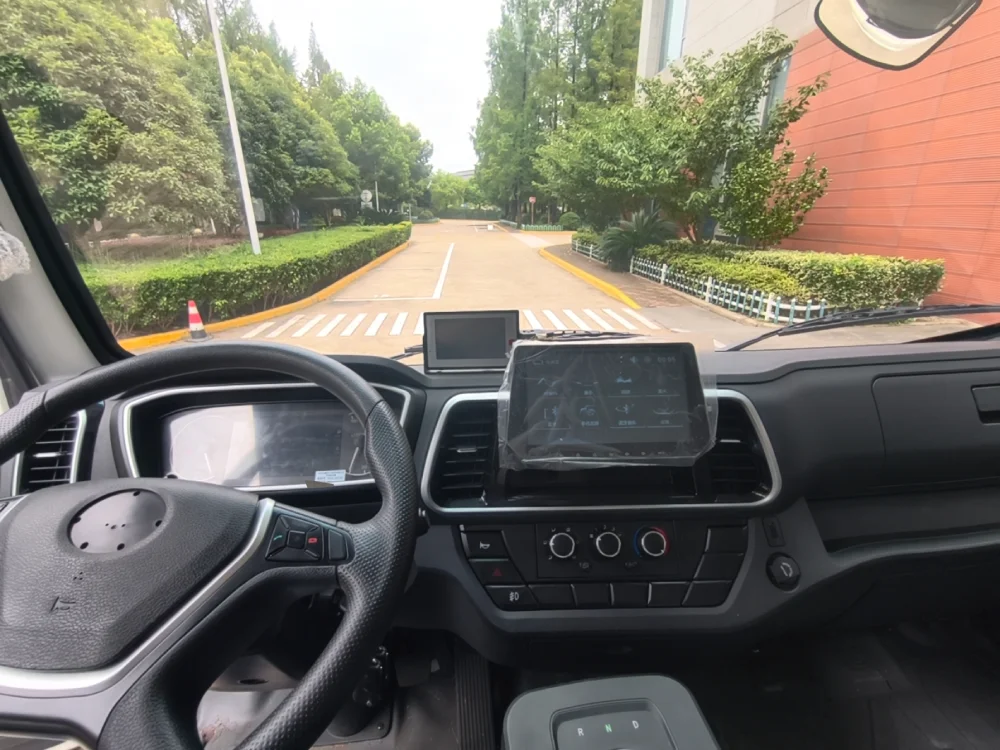

- Customizable Control Panel & Software: The digital dashboard, instrument cluster, and vehicle/reefer control panel functions can be programmed and tailored according to specific customer requirements (including localized language interfaces, specialized UI logic, etc.).
Why Choose Our Commercial Truck Platform for Your Fleet?
- Optimized TCO (Total Cost of Ownership): Lower energy costs compared to traditional fossil-fuel vehicles, ensuring a predictable return on investment (ROI).
- Turnkey Flexibility: From bare chassis to fully integrated cooling solutions, we save you time and secondary modification costs.
- Eco-Friendly Compliance: Helps businesses meet local carbon-reduction targets and secure green logistics contracts.
Ready to Upgrade Your Fleet?
Looking to scale your operations with a reliable electric refrigerated truck tailored to your exact specifications?
👉 You can contact our team at contact@jenwyntech.com or complete the form below to request a customized quote, download the full technical datasheet, or discuss chassis, powertrain, software panel, and body options for your target market.
