Developing an electric truck from the ground up takes time and requires significant engineering resources. For manufacturers looking to introduce a new commercial EV, starting with a proven electric truck chassis can reduce the amount of development required and provide a faster path to market.
Jenwyn Tech provides a proven electric truck chassis platform that has entered batch production and has been exported to international markets including the Philippines, South Korea and Ecuador.
The platform combines the core chassis and electric drive systems in an established vehicle architecture. Customers can use the existing platform as a starting point and adapt selected specifications to suit their vehicle, body and market requirements—without having to develop the entire chassis from scratch.
A Proven Platform for Commercial EV Truck Development
A new electric truck involves much more than selecting a motor and battery. The chassis, electric drive system, battery installation, braking, steering, suspension and vehicle controls all need to work together as a complete vehicle system. Developing and validating these systems from the ground up can require substantial engineering time and investment.
A proven chassis platform offers a different approach.
Instead of starting with a blank sheet, manufacturers can build on an existing electric truck architecture that has already been developed and put into production. This can help:
- Reduce upfront R&D investment
- Shorten chassis development time
- Reduce engineering workload
- Avoid repeating development work
- Simplify the development of a new commercial EV
- Bring new vehicle models to market sooner
The idea is simple: keep what already works and develop only what needs to change.
Flexible Chassis, Not a Fixed Configuration
Although the platform is based on an established design, it is not limited to one fixed vehicle configuration. Selected specifications can be adapted according to the customer’s vehicle requirements and target application while retaining the proven core chassis and electric drive architecture.
Depending on the project, this may include:
- Wheelbase and overall dimensions
- Payload requirements
- Battery capacity
- Vehicle body configuration
- Suspension setup
- Electrical equipment
- Application-specific requirements
This provides a practical middle ground between a fixed production vehicle and a completely new truck chassis development program. Customers can retain the proven elements of the platform and make targeted changes where required.
Electric Truck Chassis and Powertrain
The platform combines a commercial truck chassis layout with a rear-mounted electric drive axle system.
1. Electric Drive Axle System
The platform uses a permanent magnet synchronous motor with rear-wheel drive axle and a fixed-ratio reduction gearbox. Depending on the configuration, the motor provides approximately:
- 75 kW rated power
- Up to 145 kW peak power
- Up to 330 N·m peak torque
The electric drive axle system is designed for commercial truck applications, providing the torque and controllability required for everyday operation.
2. LFP Battery System
The platform uses a lithium iron phosphate (LFP) battery system with a nominal voltage of approximately 614 V. The current configuration uses approximately 92 kWh of battery capacity. Battery capacity and configuration can be adjusted according to the required range, payload and operating conditions.

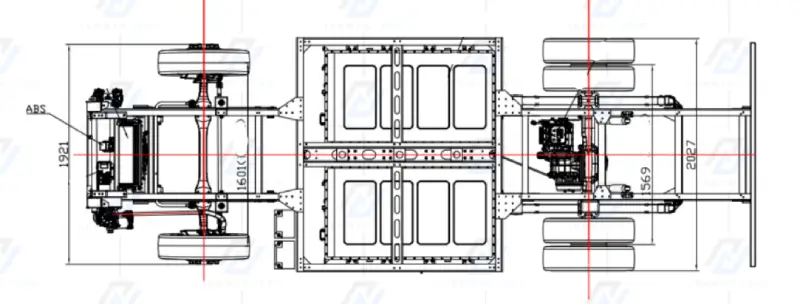

3. EV Chassis Architecture
The chassis incorporates:
- Welded variable-section frame
- Front I-beam axle
- Integrated electric drive rear axle
- Leaf-spring suspension
- Hydraulic braking system
- Electric power steering
The chassis architecture is designed around the load, durability and operating requirements of commercial electric trucks.
Typical Specifications
The following figures represent a typical configuration of the platform. Specifications may vary depending on the vehicle body, battery configuration and customer requirements.
| Specification | Value |
|---|---|
| Vehicle length | 5840 mm |
| Vehicle width | 2040 mm |
| Wheelbase | 3360 mm |
| Gross vehicle weight | 4495 kg |
| Payload | 1705 kg |
| Ground clearance | ≥210 mm |
| Maximum gradeability | ≥25% |
| Maximum climbing speed | ≥20 km/h |
| Maximum speed | ≥100 km/h |
| Driving range (WLTP) | ≥280 km* |
| Battery capacity | 92.16 kWh |
| Battery chemistry | LFP |
| Battery system voltage | 614 V |
| Motor type | Permanent magnet synchronous motor |
| Rated motor power | 75 kW |
| Peak motor power | 145 kW |
| Rated motor torque | 150 N·m |
| Peak motor torque | 330 N·m |
| Drive configuration | Rear-wheel drive |
* Actual driving range depends on vehicle configuration, payload, driving cycle, road conditions and operating environment.
Proven in International Markets

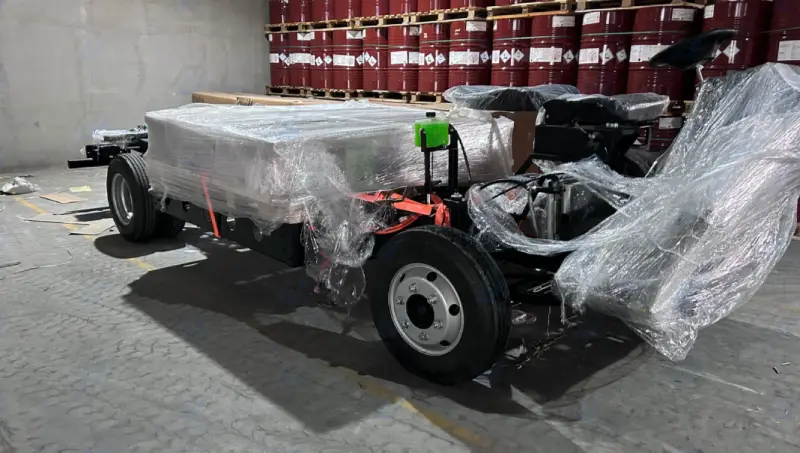

The electric truck chassis has already entered batch production and has been exported to multiple international markets. Current international applications include the Philippines, South Korea, Ecuador, and more.
These markets represent different vehicle operating environments and customer requirements, providing practical production and export experience with the platform. This production experience gives customers an established reference point when evaluating the chassis for their own commercial EV programs.
Who Is This Electric Truck Chassis For?
The platform can be used by different types of commercial EV manufacturers and vehicle developers.
1. Truck Manufacturers
For manufacturers developing an electric version of an existing truck, the chassis can provide an established foundation for a new EV model.
2. New Commercial EV Entrants
Companies entering the commercial EV market can use the platform to reduce the amount of chassis and powertrain development required for an initial vehicle program.
3. Local Vehicle Manufacturers
Local manufacturers can combine the electric chassis with their own bodywork or work with local body builders to develop a vehicle for their market.
4. Vehicle Development Projects
For projects with specific requirements for dimensions, payload, battery capacity or body configuration, selected elements of the platform can be adapted without developing the entire chassis from the beginning.
A More Efficient Route to Market
A completely new electric truck chassis gives manufacturers maximum freedom, but it also means taking on the full cost and workload of chassis development, testing and validation. A proven platform provides another option.
Start with a proven chassis → Adapt what needs to change → Complete vehicle development → Move toward production
This approach does not eliminate engineering work. Instead, it allows manufacturers to focus their engineering resources on the areas that are unique to their vehicle. For the right project, this can mean lower initial R&D investment, less development work and a shorter path from vehicle concept to market launch.
Electric Truck Chassis for Your Commercial EV Project
Looking for an electric truck chassis for a new commercial EV?
Jenwyn Tech provides a proven electric truck chassis platform for manufacturers and vehicle developers that want to reduce development work, shorten time to market and adapt an established chassis to their specific requirements. The platform can be supplied as a foundation for customer-developed vehicle bodies, with selected specifications configurable according to the vehicle and target market.
Email us at contact@jenwyntech.com or fill out the inquiry form below to discuss your project requirements.
